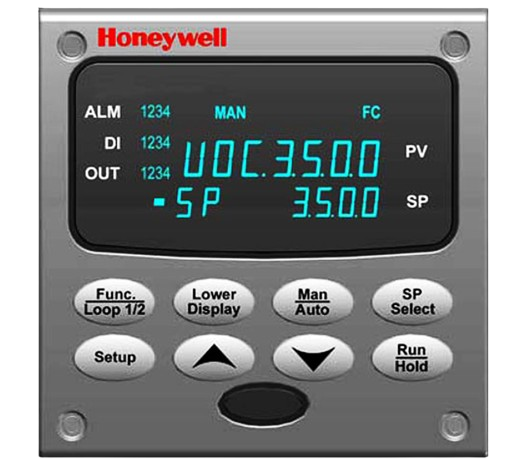

Jual Honeywell Controller DC3500

Spesifikasi Honeywell DC3500

• Model: Honeywell DC3500

• Display: Dual LED 4-digit (PV dan SV)

• Input Type: Thermocouple (J, K, T, E, R, S, B, N), RTD (Pt100), mV, mA, V

• Output Type: Relay, SSR Drive (12VDC), 4–20 mA DC

• Control Mode: PID, On/Off, Auto-tuning, Manual

• Control Accuracy: ±0.2% dari span

• Sampling Rate: 10 times/sec

• Power Supply: 100–240VAC, 50/60Hz

• Communication: RS-485 Modbus RTU (opsional)

• Alarm Output: Hingga 3 alarm (high/low/deviation)

• Ramp/Soak Function: Hingga 8 segment program (opsional)

• Mounting: Panel mount (DIN standard 96 x 96 mm)

• Operating Temperature: 0–50°C

• Protection Level: IP65 (front panel)

• Weight: ±400 gram

Tipe / Model Umum Honeywell Controllers

1. DC1000 Series
   Contoh model: DC1010, DC1020, DC1030, DC1040
   Varian berdasarkan ukuran panel (1/16 DIN, 1/8 DIN, 3/16 DIN, 1/4 DIN). DC100 / DC series (Panel mount, simpler temperature control)

2. Misalnya DC100-8080 adalah contoh model Honeywell DC100 controller panel 1/4 DIN.

3. Controllers & Programmers (Honeywell general controllers beyond DC1000)
   Honeywell menawarkan berbagai controller / programmer untuk temperature, level, pressure, dan variabel proses lain dalam berbagai format (1/16 DIN, 1/8 DIN, 1/4 DIN).
