Spesifikasi Umum Mitsubishi Inverter

• Merek: Mitsubishi Electric

• Jenis: Variable Frequency Drive (VFD)

• Daya Output: 0.1 kW hingga 630 kW

• Tegangan Input: 200V / 400V AC (1 phase & 3 phase)

• Frekuensi Output: 0.1 Hz – 400 Hz

• Mode Kontrol: V/F Control, Sensorless Vector, Vector Control

• Komunikasi: Modbus RTU, Profibus, Ethernet/IP (tergantung model)

• Proteksi: Overload, Overvoltage, Short Circuit, Overheat

• Sertifikasi: CE, UL, RoHS

Tipe dan Model Mitsubishi Inverter yang Tersedia

Prestasi Jaya Maju menjual berbagai tipe dan seri lengkap Mitsubishi Inverter, antara lain:

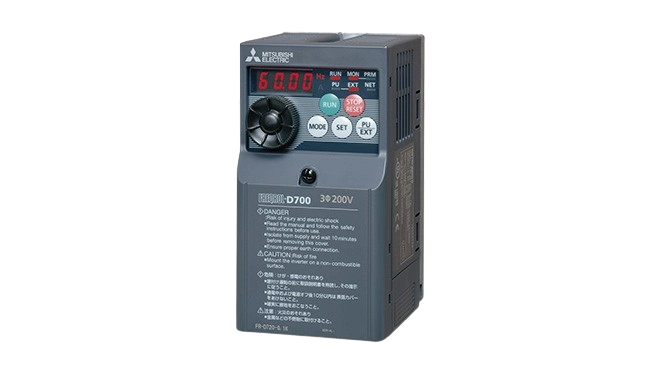

⚙️ 1. FR-D700 Series

• Tipe: FR-D720S, FR-D740, FR-D720-0.4K hingga 7.5K

• Cocok untuk aplikasi sederhana seperti conveyor, blower, dan mesin kecil.

• Kompak, hemat energi, dan mudah dipasang.

⚙️ 2. FR-E700 Series

• Tipe: FR-E720, FR-E740, FR-E720S

• Didesain untuk performa tinggi, ideal untuk sistem produksi modern.

• Mendukung komunikasi RS-485 dan Modbus.

⚙️ 3. FR-F700 Series

• Tipe: FR-F740, FR-F720

• Cocok untuk sistem pompa, fan, dan HVAC.

• Hemat energi hingga 30% dengan fitur ECO Mode.

⚙️ 4. FR-A700 Series

• Tipe: FR-A720, FR-A740

• High performance inverter dengan sensorless vector control.

• Mendukung motor induction dan motor permanen magnet.

⚙️ 5. FR-A800 Series (Generasi Terbaru)

• Tipe: FR-A820, FR-A840, FR-A850

• Inverter kelas premium dengan kecepatan tinggi dan presisi luar biasa.

• Komunikasi lengkap: Ethernet/IP, Modbus, dan CC-Link.

• Dilengkapi dengan safety stop & built-in PLC.

⚙️ 6. FR-F800 Series

• Didesain khusus untuk aplikasi pompa dan kipas (HVAC system).

• Memiliki fitur Auto-Tuning, PID Control, dan Energy Saving Monitor.

Spesifikasi Umum Mitsubishi FR-E700 Series

• Merek: Mitsubishi Electric

• Seri: FR-E700 (High Performance Compact Inverter)

• Tegangan Input:

  • 1 Phase 200V (FR-E720S)

  • 3 Phase 200V (FR-E720)

  • 3 Phase 400V (FR-E740)

• Daya Output: 0.1 kW – 37 kW

• Frekuensi Output: 0.2 Hz – 400 Hz

• Kontrol Mode: V/F Control, Sensorless Vector Control, Advanced PID

• Komunikasi: RS-485 (Modbus RTU), Profibus, DeviceNet, CC-Link

• Proteksi: Overcurrent, Overheat, Overvoltage, Stall Prevention

• Fitur Tambahan:

  • Auto-Tuning Motor

  • Integrated Brake Transistor (hingga 15kW)

  • Safety Stop (STO) Function

  • Built-in PLC Function (Simple Logic Control)

Tipe dan Model Lengkap Mitsubishi FR-E700 Series

🔹 FR-E720S Series (Single Phase 200V Class)

Ideal untuk aplikasi kecil dan menengah.

• FR-E720S-0.1K

• FR-E720S-0.2K

• FR-E720S-0.4K

• FR-E720S-0.75K

🔹 FR-E720 Series (Three Phase 200V Class)

Kinerja tinggi dengan berbagai pilihan daya.

• FR-E720-0.1K

• FR-E720-0.2K

• FR-E720-0.4K

• FR-E720-0.75K

• FR-E720-1.5K

• FR-E720-2.2K

• FR-E720-3.7K

• FR-E720-5.5K

• FR-E720-7.5K

• FR-E720-11K

• FR-E720-15K

• FR-E720-18.5K

• FR-E720-22K

🔹 FR-E740 Series (Three Phase 400V Class)

Untuk aplikasi dengan kebutuhan daya lebih tinggi.

• FR-E740-0.4K

• FR-E740-0.75K

• FR-E740-1.5K

• FR-E740-2.2K

• FR-E740-3.7K

• FR-E740-5.5K

• FR-E740-7.5K

• FR-E740-11K

• FR-E740-15K

• FR-E740-18.5K

• FR-E740-22K

• FR-E740-30K

• FR-E740-37K

Spesifikasi Umum Mitsubishi FR-F700 Series

• Merek: Mitsubishi Electric

• Seri: FR-F700 (Energy Saving Inverter)

• Tegangan Input:

  • 3 Phase 200V (FR-F720)

  • 3 Phase 400V (FR-F740)

• Daya Output: 0.75 kW – 630 kW

• Frekuensi Output: 0.2 Hz – 400 Hz

• Mode Kontrol: V/F Control, Sensorless Vector Control, Advanced PID

• Komunikasi: RS-485 (Modbus RTU), Profibus, CC-Link, DeviceNet, LonWorks

• Proteksi: Overcurrent, Overvoltage, Overheat, Stall Prevention, Dry-run detection

• Fitur Tambahan:

  • Built-in PID Controller

  • Auto Energy-Saving Function

  • Auto-Tuning Motor

  • Soft Start/Stop

  • Built-in EMC Filter (tergantung model)

  • Multi-speed Operation

  • Analog/Digital I/O fleksibel

Tipe dan Model Lengkap Mitsubishi FR-F700 Series

🔹 FR-F720 (3 Phase 200V Class)

• FR-F720-0.75K

• FR-F720-1.5K

• FR-F720-2.2K

• FR-F720-3.7K

• FR-F720-5.5K

• FR-F720-7.5K

• FR-F720-11K

• FR-F720-15K

• FR-F720-18.5K

• FR-F720-22K

• FR-F720-30K

• FR-F720-37K

• FR-F720-45K

• FR-F720-55K

• FR-F720-75K

• FR-F720-90K

🔹 FR-F740 (3 Phase 400V Class)

• FR-F740-0.75K

• FR-F740-1.5K

• FR-F740-2.2K

• FR-F740-3.7K

• FR-F740-5.5K

• FR-F740-7.5K

• FR-F740-11K

• FR-F740-15K

• FR-F740-18.5K

• FR-F740-22K

• FR-F740-30K

• FR-F740-37K

• FR-F740-45K

• FR-F740-55K

• FR-F740-75K

• FR-F740-90K

• FR-F740-110K

• FR-F740-132K

• FR-F740-160K

• FR-F740-185K

• FR-F740-200K

• FR-F740-220K

• FR-F740-280K

• FR-F740-315K

• FR-F740-355K

• FR-F740-400K

• FR-F740-450K

• FR-F740-500K

• FR-F740-560K

• FR-F740-630K

Spesifikasi Umum Mitsubishi FR-A700 Series

• Merek: Mitsubishi Electric

• Seri: FR-A700 (High Performance Inverter)

• Tegangan Input:

  • 3 Phase 200V (FR-A720)

  • 3 Phase 400V (FR-A740)

• Daya Output: 0.4 kW – 630 kW

• Frekuensi Output: 0.2 Hz – 400 Hz

• Mode Kontrol:

  • V/F Control

  • Vector Control (Sensorless dan dengan Encoder)

  • Torque Control

  • Advanced PID Control

• Komunikasi: RS-485 (Modbus RTU), Profibus DP, CC-Link, DeviceNet, CANopen, Ethernet (opsional)

• Proteksi: Overcurrent, Overvoltage, Stall Prevention, Overheat, Phase Loss

• Fitur Tambahan:

  • Auto-Tuning Motor

  • Regenerative Energy Control

  • Built-in PLC Function

  • EMC Filter (tergantung model)

  • Multiple Motor Control

  • USB & RS-485 Interface

  • Smart Cooling Fan System

Tipe dan Model Lengkap Mitsubishi FR-A700 Series

🔹 FR-A720 (3 Phase 200V Class)

• FR-A720-0.4K

• FR-A720-0.75K

• FR-A720-1.5K

• FR-A720-2.2K

• FR-A720-3.7K

• FR-A720-5.5K

• FR-A720-7.5K

• FR-A720-11K

• FR-A720-15K

• FR-A720-18.5K

• FR-A720-22K

• FR-A720-30K

• FR-A720-37K

• FR-A720-45K

• FR-A720-55K

• FR-A720-75K

• FR-A720-90K

🔹 FR-A740 (3 Phase 400V Class)

• FR-A740-0.4K

• FR-A740-0.75K

• FR-A740-1.5K

• FR-A740-2.2K

• FR-A740-3.7K

• FR-A740-5.5K

• FR-A740-7.5K

• FR-A740-11K

• FR-A740-15K

• FR-A740-18.5K

• FR-A740-22K

• FR-A740-30K

• FR-A740-37K

• FR-A740-45K

• FR-A740-55K

• FR-A740-75K

• FR-A740-90K

• FR-A740-110K

• FR-A740-132K

• FR-A740-160K

• FR-A740-185K

• FR-A740-200K

• FR-A740-220K

• FR-A740-280K

• FR-A740-315K

• FR-A740-355K

• FR-A740-400K

• FR-A740-450K

• FR-A740-500K

• FR-A740-560K

• FR-A740-630K

Spesifikasi Umum Mitsubishi FR-A800 Series

• Merek: Mitsubishi Electric

• Seri: FR-A800 (Compact & High Performance Drive)

• Tegangan Input:

  • FR-A820: 3 Phase 200V Class

  • FR-A840: 3 Phase 400V Class

• Rentang Daya Output: 0.4 kW – 630 kW

• Frekuensi Output: 0.2 Hz – 590 Hz

• Mode Kontrol:

  • V/F Control

  • Advanced Vector Control (sensorless / dengan encoder)

  • Real Sensor Feedback Control

  • Torque Control Mode

• Komunikasi: RS-485 (Modbus RTU), CC-Link IE Field, Profibus, Profinet, DeviceNet, Ethernet/IP, Modbus TCP

• Fitur Keamanan: STO (Safe Torque Off), Safe Stop, Safety Relay

• Proteksi: Overcurrent, Overvoltage, Stall Prevention, Overheat, Ground Fault

• Fitur Tambahan:

  • Built-in PLC Function (Simple Sequence)

  • Auto-Tuning Motor (IM & PM Motor)

  • Energy Saving Function

  • USB Port untuk PC Connection

  • Multi-speed Operation (hingga 15 langkah)

  • Regenerative Braking Function

  • Multi-language Display Panel

Tipe dan Model Lengkap Mitsubishi FR-A800 Series

🔹 FR-A820 (3 Phase 200V Class)

• FR-A820-0.4K

• FR-A820-0.75K

• FR-A820-1.5K

• FR-A820-2.2K

• FR-A820-3.7K

• FR-A820-5.5K

• FR-A820-7.5K

• FR-A820-11K

• FR-A820-15K

• FR-A820-18.5K

• FR-A820-22K

• FR-A820-30K

• FR-A820-37K

• FR-A820-45K

• FR-A820-55K

• FR-A820-75K

• FR-A820-90K

🔹 FR-A840 (3 Phase 400V Class)

• FR-A840-0.4K

• FR-A840-0.75K

• FR-A840-1.5K

• FR-A840-2.2K

• FR-A840-3.7K

• FR-A840-5.5K

• FR-A840-7.5K

• FR-A840-11K

• FR-A840-15K

• FR-A840-18.5K

• FR-A840-22K

• FR-A840-30K

• FR-A840-37K

• FR-A840-45K

• FR-A840-55K

• FR-A840-75K

• FR-A840-90K

• FR-A840-110K

• FR-A840-132K

• FR-A840-160K

• FR-A840-185K

• FR-A840-200K

• FR-A840-220K

• FR-A840-280K

• FR-A840-315K

• FR-A840-355K

• FR-A840-400K

• FR-A840-450K

• FR-A840-500K

• FR-A840-560K

• FR-A840-630K

Spesifikasi Mitsubishi FR-F800 Series

• • • • Model: FR-F800 Series (Compact Drive)

      • Tegangan Input: 3 Phase 200–240V / 380–480V AC

      • Kisaran Daya: 0.75 kW – 630 kW

      • Kontrol Motor: V/F Control, Advanced Vector Control, Sensorless Vector

      • Komunikasi: Modbus RTU, BACnet MS/TP, Ethernet/IP, Profibus, LonWorks

      • Fitur Tambahan:

        • Built-in PLC Function

        • Auto-tuning dan Auto Energy Save

        • Intelligent PID Control

        • Real-time Fault Diagnosis

        • LCD Display & Easy Parameter Setting

Tipe dan Model Lengkap Mitsubishi FR-F800 Series

• ⚡ Tegangan 3 Phase 400V (FR-F840-xxxx-3)

  Dirancang untuk sistem industri umum dengan daya besar dan efisiensi tinggi.
  Model dan Kapasitas Daya:

  • FR-F840-00026-3 – 0.75 kW

  • FR-F840-00052-3 – 1.5 kW

  • FR-F840-00083-3 – 2.2 kW

  • FR-F840-00126-3 – 3.7 kW

  • FR-F840-00188-3 – 5.5 kW

  • FR-F840-00260-3 – 7.5 kW

  • FR-F840-00380-3 – 11 kW

  • FR-F840-00550-3 – 15 kW

  • FR-F840-00770-3 – 18.5 kW

  • FR-F840-00920-3 – 22 kW

  • FR-F840-01200-3 – 30 kW

  • FR-F840-01600-3 – 37 kW

  • FR-F840-01900-3 – 45 kW

  • FR-F840-02400-3 – 55 kW

  • FR-F840-02800-3 – 63 kW

  • FR-F840-03200-3 – 75 kW

  • FR-F840-03600-3 – 90 kW

  • FR-F840-04100-3 – 110 kW

  • FR-F840-04700-3 – 132 kW

  • FR-F840-05400-3 – 160 kW

  • FR-F840-06100-3 – 185 kW

  • FR-F840-07100-3 – 220 kW

  • FR-F840-08200-3 – 250 kW

  • FR-F840-09600-3 – 315 kW

  • FR-F840-11300-3 – 355 kW

  • FR-F840-13200-3 – 400 kW

  • FR-F840-16000-3 – 450 kW

  • FR-F840-18500-3 – 500 kW

  • FR-F840-22000-3 – 560 kW

  • FR-F840-25000-3 – 630 kW

  ---

  ⚡ Tegangan 3 Phase 200V (FR-F820-xxxx-2)

  Cocok untuk sistem menengah dan mesin manufaktur dengan tegangan rendah.
  Model dan Kapasitas Daya:

  • FR-F820-00026-2 – 0.4 kW

  • FR-F820-00052-2 – 0.75 kW

  • FR-F820-00083-2 – 1.5 kW

  • FR-F820-00126-2 – 2.2 kW

  • FR-F820-00188-2 – 3.7 kW

  • FR-F820-00260-2 – 5.5 kW

  • FR-F820-00380-2 – 7.5 kW

  • FR-F820-00550-2 – 11 kW

  • FR-F820-00770-2 – 15 kW

  • FR-F820-00920-2 – 18.5 kW

  • FR-F820-01200-2 – 22 kW

  • FR-F820-01600-2 – 30 kW

  • FR-F820-01900-2 – 37 kW

  • FR-F820-02400-2 – 45 kW

  • FR-F820-02800-2 – 55 kW

  • FR-F820-03200-2 – 63 kW

  ---

  🌦️ Tipe Outdoor (FR-F846-xxxx-3)

  Didesain dengan perlindungan IP55 untuk penggunaan di luar ruangan atau lingkungan berdebu & lembap.
  Model Populer:

  • FR-F846-00083-3 – 2.2 kW

  • FR-F846-00188-3 – 5.5 kW

  • FR-F846-00380-3 – 11 kW

  • FR-F846-00770-3 – 18.5 kW

  • FR-F846-01600-3 – 37 kW

  • FR-F846-02400-3 – 55 kW

  • FR-F846-03200-3 – 75 kW

  • FR-F846-04100-3 – 110 kW

  ---

  🚀 High Performance Type (FR-F860 / FR-F870 Series)

  Untuk aplikasi berat seperti pompa industri besar, chiller, dan sistem pendingin pabrik.
  Model yang Umum Digunakan:

  • FR-F860-00380-3 – 11 kW

  • FR-F860-00770-3 – 18.5 kW

  • FR-F860-01600-3 – 37 kW

  • FR-F860-02400-3 – 55 kW

  • FR-F860-04100-3 – 110 kW

  • FR-F870-05400-3 – 160 kW

  • FR-F870-07100-3 – 220 kW

  • FR-F870-09600-3 – 315 kW

  ---

  🧩 Varian FR-F820-EC & FR-F840-EC (European Compact Version)

  Didesain untuk standar EMC Category C2/C3 dengan fitur penghematan daya dan komunikasi lanjutan.

  • FR-F820-00052-EC – 0.75 kW

  • FR-F820-00126-EC – 2.2 kW

  • FR-F820-00380-EC – 7.5 kW

  • FR-F840-00920-EC – 22 kW

  • FR-F840-02400-EC – 55 kW

  • FR-F840-04100-EC – 110 kW

Spesifikasi Mitsubishi Inverter FR-CS80 Series

• Tegangan Input:

  • 1 Phase 200–240V AC

  • 3 Phase 200–240V AC / 380–480V AC

• Daya Output: 0.1 kW – 2.2 kW

• Kontrol Motor: V/F Control, Sensorless Vector Control

• Frekuensi Output: 0.2 – 400 Hz

• Fitur Utama:

  • Built-in USB Port (parameter setting & monitoring)

  • Safe Torque Off (STO)

  • PID Control

  • Modbus RTU Communication

  • Overload protection (150% for 60s)

  • Built-in EMC Filter

  • Compact design & easy DIN-rail mounting

Tipe dan Model Mitsubishi FR-CS80 Series

Berikut tipe dan daya yang tersedia di pasaran:

Single Phase 200V Class

• FR-CS82-0.1K – 0.1 kW

• FR-CS82-0.2K – 0.2 kW

• FR-CS82-0.4K – 0.4 kW

• FR-CS82-0.75K – 0.75 kW

• FR-CS82-1.5K – 1.5 kW

• FR-CS82-2.2K – 2.2 kW

Three Phase 200V Class

• FR-CS83-0.1K – 0.1 kW

• FR-CS83-0.2K – 0.2 kW

• FR-CS83-0.4K – 0.4 kW

• FR-CS83-0.75K – 0.75 kW

• FR-CS83-1.5K – 1.5 kW

• FR-CS83-2.2K – 2.2 kW

Three Phase 400V Class

• FR-CS84-0.4K – 0.4 kW

• FR-CS84-0.75K – 0.75 kW

• FR-CS84-1.5K – 1.5 kW

• FR-CS84-2.2K – 2.2 kW

Spesifikasi Mitsubishi FR-A700 Plus Series

• Tegangan Input:

  • 3 Phase 200–240V / 380–480V AC

• Rentang Daya: 0.4 kW – 630 kW

• Kontrol Motor:

  • Advanced Vector Control (Sensorless / Closed-loop)

  • Real Sensorless Vector Control for IM & PM Motor

• Frekuensi Output: 0.2 – 400 Hz

• Built-in Function:

  • PLC Function

  • PID Control

  • RS-485 (Modbus RTU) Communication

  • Overload protection (200% selama 3 detik)

  • Safety Stop (STO) Function

• Fitur Tambahan:

  • Real-time autotuning

  • Auto Energy Save

  • Slip compensation

  • Torque limit & soft start function

Tipe dan Model Mitsubishi Inverter FR-A700 Plus Series

Berikut beberapa model populer di pasaran:

Tegangan 3 Phase 400V Class

• FR-A740-00023-3-60 – 0.75 kW

• FR-A740-00052-3-60 – 1.5 kW

• FR-A740-00126-3-60 – 3.7 kW

• FR-A740-00260-3-60 – 5.5 kW

• FR-A740-00380-3-60 – 7.5 kW

• FR-A740-00550-3-60 – 11 kW

• FR-A740-00770-3-60 – 15 kW

• FR-A740-00920-3-60 – 18.5 kW

• FR-A740-01200-3-60 – 22 kW

• FR-A740-01600-3-60 – 30 kW

• FR-A740-02400-3-60 – 45 kW

• FR-A740-03200-3-60 – 55 kW

• FR-A740-04100-3-60 – 75 kW

• FR-A740-05400-3-60 – 90 kW

• FR-A740-07100-3-60 – 110 kW

• FR-A740-09600-3-60 – 160 kW

• FR-A740-13200-3-60 – 220 kW

• FR-A740-18500-3-60 – 315 kW

Tegangan 3 Phase 200V Class

• FR-A720-00013-2-60 – 0.4 kW

• FR-A720-00026-2-60 – 0.75 kW

• FR-A720-00052-2-60 – 1.5 kW

• FR-A720-00126-2-60 – 3.7 kW

• FR-A720-00260-2-60 – 5.5 kW

• FR-A720-00380-2-60 – 7.5 kW

• FR-A720-00550-2-60 – 11 kW

• FR-A720-00770-2-60 – 15 kW

• FR-A720-00920-2-60 – 18.5 kW

• FR-A720-01200-2-60 – 22 kW

Spesifikasi Umum Mitsubishi Inverter FR-E800 Series

• Tegangan Input:

  • 1-Phase 200–240V AC (0.1–2.2 kW)

  • 3-Phase 200–240V / 380–480V AC (0.1–15 kW)

• Frekuensi Output: 0.2 – 590 Hz

• Kontrol Motor:

  • Advanced Vector Control (IM & PM Motor)

  • Sensorless Vector Control

  • Real-Time Auto Tuning

• Built-in Function:

  • RS-485 (Modbus RTU), Ethernet, dan CC-Link IE TSN

  • PLC Function (Logic Control Built-in)

  • PID Control, Automatic Torque Boost

  • STO (Safe Torque Off), SS1, SLS Safety Function

  • Real-time diagnostics & predictive maintenance

• Perlindungan Lingkungan:

  • Coated PCB (perlindungan terhadap debu & kelembapan)

  • Built-in EMC Filter

Tipe dan Model Mitsubishi Inverter FR-E800 Series

Berikut beberapa model populer di pasaran:

1-Phase 200V Class

• FR-E820-00013-2 – 0.1 kW

• FR-E820-00026-2 – 0.2 kW

• FR-E820-00052-2 – 0.4 kW

• FR-E820-00083-2 – 0.75 kW

• FR-E820-00126-2 – 1.5 kW

• FR-E820-00220-2 – 2.2 kW

3-Phase 200V Class

• FR-E820-00013-3 – 0.1 kW

• FR-E820-00026-3 – 0.2 kW

• FR-E820-00052-3 – 0.4 kW

• FR-E820-00083-3 – 0.75 kW

• FR-E820-00126-3 – 1.5 kW

• FR-E820-00220-3 – 2.2 kW

• FR-E820-00370-3 – 3.7 kW

• FR-E820-00550-3 – 5.5 kW

• FR-E820-00750-3 – 7.5 kW

• FR-E820-01100-3 – 11 kW

• FR-E820-01500-3 – 15 kW

3-Phase 400V Class

• FR-E840-00026-3 – 0.4 kW

• FR-E840-00052-3 – 0.75 kW

• FR-E840-00083-3 – 1.5 kW

• FR-E840-00126-3 – 2.2 kW

• FR-E840-00220-3 – 3.7 kW

• FR-E840-00370-3 – 5.5 kW

• FR-E840-00550-3 – 7.5 kW

• FR-E840-00750-3 – 11 kW

• FR-E840-01100-3 – 15 kW

Spesifikasi Mitsubishi Inverter FR-DU Series

• Model Populer:

  • FR-DU07

  • FR-DU08

  • FR-DU09

  • FR-DU10

• Fungsi Utama:

  • Pengaturan parameter inverter

  • Monitoring status operasi (frekuensi, arus, tegangan, alarm)

  • Pengoperasian start/stop dan reset inverter

  • Menyimpan hingga 3 set parameter berbeda

  • Komunikasi langsung via port RJ45

• Display: LCD digital dengan indikator status

• Kompatibilitas: FR-D700, FR-E700, FR-A700, FR-F800, FR-A800 Series

• Fitur Tambahan:

  • Proteksi overvoltage dan overcurrent

  • Fungsi password untuk keamanan

  • Dapat digunakan secara portable atau panel mount

Tipe dan Model Mitsubishi FR-DU Series

Beberapa tipe yang umum digunakan di industri antara lain:

• FR-DU07: Display dasar untuk FR-D700 Series

• FR-DU08: Kompatibel dengan FR-E700 dan FR-A700, LCD lebih lebar

• FR-DU09: Mendukung fungsi parameter backup dan copy

• FR-DU10: Versi terbaru dengan komunikasi CC-Link dan tampilan multi-bahasa
