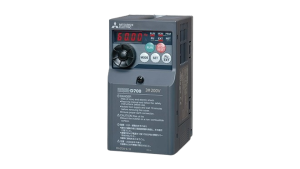

Jual Mitsubishi Inverter FR-D700 Series
Jual Mitsubishi Inverter FR-D700 Series | Prestasi Jaya Maju
Prestasi Jaya Maju menyediakan Mitsubishi Inverter FR-D700 Series, inverter ringkas dan andal yang dirancang untuk aplikasi pengendalian motor dengan efisiensi tinggi dan keandalan jangka panjang.
Seri FR-D700 merupakan pilihan terbaik untuk berbagai sistem otomasi industri yang membutuhkan pengendalian kecepatan motor AC dengan performa stabil dan fitur perlindungan canggih.
Mitsubishi FR-D700 dikenal karena kemudahan instalasi, pengoperasian sederhana, serta kemampuan adaptif terhadap berbagai kebutuhan industri seperti conveyor, fan, pump, dan mesin produksi ringan hingga menengah.
Spesifikasi Teknis Mitsubishi FR-D700
| Parameter | Spesifikasi |
|---|---|
| Input Voltage | 1-Phase 200–240V AC / 3-Phase 380–480V AC |
| Output Frequency Range | 0.2 – 400 Hz |
| Control Method | V/F Control, Advanced Magnetic Flux Vector Control |
| Motor Type | 3-Phase Induction Motor |
| Starting Torque | 150% / 1 Hz (mode vektor) |
| Frequency Setting | Potensiometer, terminal input, RS-485 |
| Cooling System | Built-in Cooling Fan |
| Protection | Overcurrent, Overvoltage, Overheating, Short Circuit |
| Communication | RS-485 (Modbus RTU) |
| Ambient Temp. | -10°C hingga +50°C |
| Mounting Type | Wall / Panel Mount (IP20 Enclosure) |
| Certifications | CE, UL, RoHS Compliant |
Tipe & Model Mitsubishi Inverter FR-D700 Series
🔹 1. FR-D720S Series (Single Phase 200–240V)
Seri ini dirancang untuk daya kecil (0.1 kW – 2.2 kW) dengan input 1-phase 200V.
Cocok untuk aplikasi kecil seperti fan, pump, dan mesin ringan.
| Model | Daya Output (kW) | Tegangan Input | Arus Output (A) |
|---|---|---|---|
| FR-D720S-0.1K | 0.1 kW | 1-Phase 200–240V | 1.0 A |
| FR-D720S-0.2K | 0.2 kW | 1-Phase 200–240V | 1.6 A |
| FR-D720S-0.4K | 0.4 kW | 1-Phase 200–240V | 2.5 A |
| FR-D720S-0.75K | 0.75 kW | 1-Phase 200–240V | 4.2 A |
| FR-D720S-1.5K | 1.5 kW | 1-Phase 200–240V | 7.5 A |
| FR-D720S-2.2K | 2.2 kW | 1-Phase 200–240V | 10.5 A |
🔹 2. FR-D720 Series (Three Phase 200–240V)
Seri ini digunakan untuk sistem 3-phase 200V, cocok untuk motor kecil hingga sedang, dan mendukung kontrol vektor otomatis (auto-tuning).
| Model | Daya Output (kW) | Tegangan Input | Arus Output (A) |
|---|---|---|---|
| FR-D720-0.1K | 0.1 kW | 3-Phase 200–240V | 1.0 A |
| FR-D720-0.2K | 0.2 kW | 3-Phase 200–240V | 1.6 A |
| FR-D720-0.4K | 0.4 kW | 3-Phase 200–240V | 2.5 A |
| FR-D720-0.75K | 0.75 kW | 3-Phase 200–240V | 4.2 A |
| FR-D720-1.5K | 1.5 kW | 3-Phase 200–240V | 7.5 A |
| FR-D720-2.2K | 2.2 kW | 3-Phase 200–240V | 10.5 A |
🔹 3. FR-D740 Series (Three Phase 380–480V)
Ini adalah seri untuk tegangan tinggi (3-phase 400V) dengan daya mulai dari 0.4 kW hingga 7.5 kW, ideal untuk industri menengah seperti mesin conveyor, pompa besar, dan HVAC.
| Model | Daya Output (kW) | Tegangan Input | Arus Output (A) |
|---|---|---|---|
| FR-D740-0.4K | 0.4 kW | 3-Phase 380–480V | 1.2 A |
| FR-D740-0.75K | 0.75 kW | 3-Phase 380–480V | 2.5 A |
| FR-D740-1.5K | 1.5 kW | 3-Phase 380–480V | 3.8 A |
| FR-D740-2.2K | 2.2 kW | 3-Phase 380–480V | 5.2 A |
| FR-D740-3.7K | 3.7 kW | 3-Phase 380–480V | 8.0 A |
| FR-D740-5.5K | 5.5 kW | 3-Phase 380–480V | 11.0 A |
| FR-D740-7.5K | 7.5 kW | 3-Phase 380–480V | 16.5 A |
🔹 4. FR-D720S-EC Series (European/Global Standard Model)
Versi EC (European Conformity) dilengkapi dengan EMC filter internal, serta memenuhi standar CE dan UL.
| Model | Daya Output (kW) | Tegangan Input | Keterangan |
|---|---|---|---|
| FR-D720S-042-EC | 0.4 kW | 1-Phase 200–240V | CE/UL compliant |
| FR-D720S-070-EC | 0.75 kW | 1-Phase 200–240V | EMC built-in |
| FR-D720S-100-EC | 1.0 kW | 1-Phase 200–240V | Auto Energy Saving |
| FR-D720S-150-EC | 1.5 kW | 1-Phase 200–240V | Kompatibel Modbus RTU |
| FR-D720S-220-EC | 2.2 kW | 1-Phase 200–240V | Enhanced overload protection |
🔹 5. FR-D740-EC Series (Three Phase 400V – Global Standard)
Versi Eropa dari seri 400V dengan sertifikasi internasional dan integrated braking transistor.
| Model | Daya Output (kW) | Tegangan Input | Fitur Tambahan |
|---|---|---|---|
| FR-D740-040-EC | 0.4 kW | 3-Phase 400V | EMC filter built-in |
| FR-D740-075-EC | 0.75 kW | 3-Phase 400V | Soft start/stop |
| FR-D740-150-EC | 1.5 kW | 3-Phase 400V | Modbus RTU |
| FR-D740-220-EC | 2.2 kW | 3-Phase 400V | Energy saving |
| FR-D740-370-EC | 3.7 kW | 3-Phase 400V | Advanced vector control |
| FR-D740-550-EC | 5.5 kW | 3-Phase 400V | Built-in braking circuit |
| FR-D740-750-EC | 7.5 kW | 3-Phase 400V | Long-life design |
🔹 6. FR-D700SP / FR-D700SC (Special Variants)
-
FR-D700SP → Versi dengan integrated braking unit
-
FR-D700SC → Versi dengan coated PCB untuk lingkungan lembap
-
FR-D700EX → Versi extended untuk integrasi dengan sistem PLC besar
