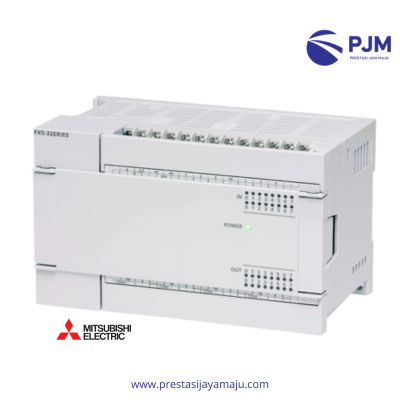

Jual Mitsubishi PLC FX5-32ER/ES

Jual Mitsubishi PLC FX5-32ER/ES

Jual Mitsubishi PLC FX5-32ER/ES

Mitsubishi PLC FX5-32ER/ES merupakan Digital Output Expansion Module (Relay Type) dengan 32 titik output yang dirancang untuk memperluas kapasitas sistem Mitsubishi PLC FX5U dan FX5UC Series.
Modul ini menawarkan fleksibilitas tinggi dengan kemampuan untuk mengendalikan beban AC dan DC berdaya tinggi melalui relay mekanis, menjadikannya pilihan ideal untuk berbagai aplikasi otomasi industri.

Dengan desain kompak, modular, dan mudah dipasang, FX5-32ER/ES memberikan solusi ekspansi output yang efisien untuk sistem kontrol mesin, proses produksi, hingga sistem distribusi energi.

Tingkatkan kapasitas kontrol sistem Anda dengan Mitsubishi PLC FX5-32ER/ES!
Solusi handal untuk ekspansi output relay 32 titik dengan daya tinggi dan fleksibilitas maksimal.

💬 Hubungi Prestasi Jaya Maju sekarang untuk konsultasi teknis dan penawaran harga terbaik

Spesifikasi Teknis Mitsubishi PLC FX5-32ER/ES

  • Seri Kompatibel: Mitsubishi PLC FX5U / FX5UC

  • Model: FX5-32ER/ES

  • Jenis Modul: Digital Output (Relay Type)

  • Jumlah Output: 32 titik

  • Tipe Output: Relay Contact (NO Contact)

  • Tegangan Output:

    • DC: 5–30V DC

    • AC: 5–250V AC

  • Arus Maksimum per Titik: 2A

  • Arus Total Maksimum: 8A per grup (dua grup output)

  • Waktu Respon:

    • ON: Maks. 10 ms

    • OFF: Maks. 10 ms

  • Isolasi Output: Relay mechanical isolation

  • Indikator LED: 32 lampu status output

  • Catu Daya Modul: Diambil dari unit utama PLC (internal power)

  • Konsumsi Daya: ±4.5W

  • Terminal: Removable terminal block (mudah dilepas & pasang)

  • Pemasangan: Side-mounted di kanan unit utama PLC

  • Dimensi (W×H×D): 90 × 90 × 87 mm

  • Berat: ±320 gram

  • Sertifikasi: CE, UL, RoHS

  • Lingkungan Operasi: Suhu 0–55°C, kelembapan 10–90% RH

Tipe Expansion dan Add-On Modules untuk Mitsubishi PLC FX5 Series

1. Expansion Boards (Add-On di slot depan CPU)

Dipasang langsung di slot depan CPU (maks. 1 board per CPU).

Tipe Fungsi
FX5-232-BD RS-232C communication (1 channel)
FX5-485-BD RS-485 communication (1 channel)
FX5-422-BD-GOT GOT connection (RS-422)
FX5-4AD Analog input 4 channel (voltage/current)
FX5-4DA Analog output 4 channel (voltage/current)
FX5-8AD Analog input 8 channel (voltage/current/thermocouple/RTD)

2. Expansion Adapters (Add-On di sisi kiri CPU)

Dipasang di sisi kiri CPU (maks. 4 adapter per CPU, butuh FX5-1PSU-5V jika >2 adapter).

Tipe Fungsi
FX5-232ADP RS-232C (1 channel)
FX5-485ADP RS-485/RS-422 (1 channel)
FX5-4AD-ADP Analog input 4 channel
FX5-4DA-ADP Analog output 4 channel
FX5-CCL-MS CC-Link master (V2)
FX5-CCLGN-MS CC-Link IE Field Basic master
FX5-ASL-M AnyWireASLINK master

3. Expansion Modules (I/O & Special Function)

Dipasang di sisi kanan CPU/expansion (maks. 16 modul tergantung konfigurasi).

Digital I/O Expansion

Tipe Spesifikasi
FX5-8EX/ES 8 input (sink/source)
FX5-16EX/ES 16 input (sink/source)
FX5-8EYR/ES 8 output relay
FX5-8EYT/ESS 8 output transistor (source)
FX5-16EYR/ES 16 output relay
FX5-16EYT/ESS 16 output transistor (source)
FX5-32ER/ES 16 input + 16 output relay
FX5-32ET/ESS 16 input + 16 output transistor

Analog Expansion

Tipe Spesifikasi
FX5-4AD 4 channel analog input
FX5-4DA 4 channel analog output
FX5-8AD 8 channel analog input (multi-type)

Temperature Control

Tipe Spesifikasi
FX5-4LC 4 channel temperature control (TC/RTD)

High-Speed Counter

Tipe Spesifikasi
FX5-16ET/ES-H 16 input + high-speed counter (200 kHz)

Positioning

Tipe Spesifikasi
FX5-20PG-D 2-axis pulse output (open collector)
FX5-20PG-P 2-axis pulse output (differential)

Communication Expansion

Tipe Spesifikasi
FX5-CNV-BUS Bus conversion (ke FX3 series I/O)
FX5-C1PS-5V Power supply untuk expansion adapter

Catatan Penting

  • FX5UC (konektor type) butuh FX5-CNV-IFC untuk pakai expansion module terminal block.
  • FX5-1PSU-5V wajib jika pakai >2 expansion adapter.
  • Maks. I/O total: 512 poin (termasuk remote I/O via CC-Link).
