Jual Mitsubishi PLC FX5-4AD

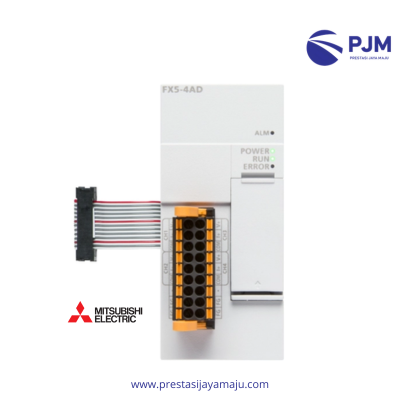

Mitsubishi PLC FX5-4AD – Modul Analog Input 4 Channel untuk FX5 Series

Jual Mitsubishi PLC FX5-4AD – Analog Input Module 4 Channel untuk FX5 Series

Mitsubishi PLC FX5-4AD merupakan modul Analog Input dari keluarga Mitsubishi FX5 Series yang dirancang untuk membaca sinyal analog dengan tingkat presisi tinggi. Modul ini memiliki 4 channel input yang mendukung berbagai sinyal seperti 0–10 V, 0–5 V, 1–5 V, 4–20 mA, dan 0–20 mA, sehingga sangat ideal untuk kebutuhan kontrol proses industri modern.

Dengan resolusi 16-bit dan waktu sampling cepat, FX5-4AD memberikan performa stabil dan akurat untuk aplikasi yang membutuhkan monitoring analog secara presisi, seperti industri manufaktur, HVAC, water treatment, hingga otomasi pabrik.

💬 Hubungi Prestasi Jaya Maju sekarang untuk mendapatkan harga terbaik Mitsubishi PLC FX5-4AD

Spesifikasi Lengkap Mitsubishi FX5-4AD

  • Tipe Modul: Analog Input

  • Jumlah Input: 4 channel

  • Input Voltage:

    • 0–10 V

    • 0–5 V

    • 1–5 V

  • Input Current:

    • 4–20 mA

    • 0–20 mA

  • Resolusi: 16-bit

  • Sampling Time: ±1 ms/channel

  • Isolation: Input ⇢ Internal circuit (Isolated)

  • Power: Menggunakan power CPU (tidak perlu external PSU)

  • Kompatibilitas: FX5U & FX5UC Series

  • Mounting: DIN Rail / Direct expansion FX5

Tipe Expansion dan Add-On Modules untuk Mitsubishi PLC FX5 Series

1. Expansion Boards (Add-On di slot depan CPU)

Dipasang langsung di slot depan CPU (maks. 1 board per CPU).

Tipe Fungsi
FX5-232-BD RS-232C communication (1 channel)
FX5-485-BD RS-485 communication (1 channel)
FX5-422-BD-GOT GOT connection (RS-422)
FX5-4AD Analog input 4 channel (voltage/current)
FX5-4DA Analog output 4 channel (voltage/current)
FX5-8AD Analog input 8 channel (voltage/current/thermocouple/RTD)

2. Expansion Adapters (Add-On di sisi kiri CPU)

Dipasang di sisi kiri CPU (maks. 4 adapter per CPU, butuh FX5-1PSU-5V jika >2 adapter).

Tipe Fungsi
FX5-232ADP RS-232C (1 channel)
FX5-485ADP RS-485/RS-422 (1 channel)
FX5-4AD-ADP Analog input 4 channel
FX5-4DA-ADP Analog output 4 channel
FX5-CCL-MS CC-Link master (V2)
FX5-CCLGN-MS CC-Link IE Field Basic master
FX5-ASL-M AnyWireASLINK master

3. Expansion Modules (I/O & Special Function)

Dipasang di sisi kanan CPU/expansion (maks. 16 modul tergantung konfigurasi).

Digital I/O Expansion

Tipe Spesifikasi
FX5-8EX/ES 8 input (sink/source)
FX5-16EX/ES 16 input (sink/source)
FX5-8EYR/ES 8 output relay
FX5-8EYT/ESS 8 output transistor (source)
FX5-16EYR/ES 16 output relay
FX5-16EYT/ESS 16 output transistor (source)
FX5-32ER/ES 16 input + 16 output relay
FX5-32ET/ESS 16 input + 16 output transistor

Analog Expansion

Tipe Spesifikasi
FX5-4AD 4 channel analog input
FX5-4DA 4 channel analog output
FX5-8AD 8 channel analog input (multi-type)

Temperature Control

Tipe Spesifikasi
FX5-4LC 4 channel temperature control (TC/RTD)

High-Speed Counter

Tipe Spesifikasi
FX5-16ET/ES-H 16 input + high-speed counter (200 kHz)

Positioning

Tipe Spesifikasi
FX5-20PG-D 2-axis pulse output (open collector)
FX5-20PG-P 2-axis pulse output (differential)

Communication Expansion

Tipe Spesifikasi
FX5-CNV-BUS Bus conversion (ke FX3 series I/O)
FX5-C1PS-5V Power supply untuk expansion adapter

Catatan Penting

  • FX5UC (konektor type) butuh FX5-CNV-IFC untuk pakai expansion module terminal block.
  • FX5-1PSU-5V wajib jika pakai >2 expansion adapter.
  • Maks. I/O total: 512 poin (termasuk remote I/O via CC-Link).
