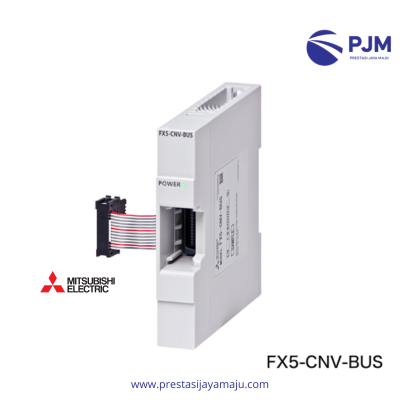

Jual Mitsubishi FX5-CNV-BUS – Bus Conversion Module untuk FX5 Series

Mitsubishi FX5-CNV-BUS adalah Bus Conversion Module yang berfungsi sebagai penghubung (converter) antara modul ekspansi BUS-type dengan PLC Mitsubishi FX5 Series. Modul ini memungkinkan pengguna untuk menambahkan berbagai tipe expansion I/O, analog module, dan special function module yang sebelumnya hanya tersedia pada sistem bus tertentu.

Dengan FX5-CNV-BUS, integrasi sistem otomasi menjadi lebih fleksibel tanpa mengubah arsitektur kontrol utama. Modul ini memastikan komunikasi antar perangkat tetap stabil, cepat, dan kompatibel untuk pengembangan sistem industri yang lebih luas.

Modul ini digunakan pada FX5U dan FX5UC untuk menambah kapasitas modul eksternal sehingga sistem PLC dapat berkembang sesuai kebutuhan mesin atau proses industri.

Butuh Mitsubishi FX5-CNV-BUS Original & Bergaransi?
Hubungi Prestasi Jaya Maju sekarang juga untuk harga terbaik, stok lengkap, serta konsultasi teknis gratis untuk kebutuhan ekspansi PLC Anda.
Kami menyediakan solusi otomasi paling lengkap dan terpercaya untuk industri.

Spesifikasi Mitsubishi FX5-CNV-BUS

1. Umum

  • Nama Modul : FX5-CNV-BUS

  • Fungsi : BUS Conversion Module

  • Kategori : Expansion Adapter

2. Kompatibilitas

  • Kompatibel dengan:

    • FX5U Series

    • FX5UC Series

  • Mendukung BUS-type expansion modules (I/O, analog, comm, dan special modules)

3. Kinerja & Fitur

  • Komunikasi internal berkecepatan tinggi

  • Transfer data stabil antar modul bus

  • Tidak memerlukan power eksternal

  • Tidak membutuhkan konfigurasi software

4. Instalasi

  • Dipasang di sisi kanan CPU

  • Mendukung chain expansion

  • Mounting via DIN Rail / direct mount

  • Compact & ringan

5. Lingkungan Operasi

  • Suhu kerja : 0 – 55°C

  • Kelembapan : 5 – 95% RH non-condensing

  • Tahan noise & getaran industri level Mitsubishi

Tipe Expansion dan Add-On Modules untuk Mitsubishi PLC FX5 Series

1. Expansion Boards (Add-On di slot depan CPU)

Dipasang langsung di slot depan CPU (maks. 1 board per CPU).

Tipe Fungsi
FX5-232-BD RS-232C communication (1 channel)
FX5-485-BD RS-485 communication (1 channel)
FX5-422-BD-GOT GOT connection (RS-422)
FX5-4AD Analog input 4 channel (voltage/current)
FX5-4DA Analog output 4 channel (voltage/current)
FX5-8AD Analog input 8 channel (voltage/current/thermocouple/RTD)

2. Expansion Adapters (Add-On di sisi kiri CPU)

Dipasang di sisi kiri CPU (maks. 4 adapter per CPU, butuh FX5-1PSU-5V jika >2 adapter).

Tipe Fungsi
FX5-232ADP RS-232C (1 channel)
FX5-485ADP RS-485/RS-422 (1 channel)
FX5-4AD-ADP Analog input 4 channel
FX5-4DA-ADP Analog output 4 channel
FX5-CCL-MS CC-Link master (V2)
FX5-CCLGN-MS CC-Link IE Field Basic master
FX5-ASL-M AnyWireASLINK master

3. Expansion Modules (I/O & Special Function)

Dipasang di sisi kanan CPU/expansion (maks. 16 modul tergantung konfigurasi).

Digital I/O Expansion

Tipe Spesifikasi
FX5-8EX/ES 8 input (sink/source)
FX5-16EX/ES 16 input (sink/source)
FX5-8EYR/ES 8 output relay
FX5-8EYT/ESS 8 output transistor (source)
FX5-16EYR/ES 16 output relay
FX5-16EYT/ESS 16 output transistor (source)
FX5-32ER/ES 16 input + 16 output relay
FX5-32ET/ESS 16 input + 16 output transistor

Analog Expansion

Tipe Spesifikasi
FX5-4AD 4 channel analog input
FX5-4DA 4 channel analog output
FX5-8AD 8 channel analog input (multi-type)

Temperature Control

Tipe Spesifikasi
FX5-4LC 4 channel temperature control (TC/RTD)

High-Speed Counter

Tipe Spesifikasi
FX5-16ET/ES-H 16 input + high-speed counter (200 kHz)

Positioning

Tipe Spesifikasi
FX5-20PG-D 2-axis pulse output (open collector)
FX5-20PG-P 2-axis pulse output (differential)

Communication Expansion

Tipe Spesifikasi
FX5-CNV-BUS Bus conversion (ke FX3 series I/O)
FX5-C1PS-5V Power supply untuk expansion adapter

Catatan Penting

  • FX5UC (konektor type) butuh FX5-CNV-IFC untuk pakai expansion module terminal block.
  • FX5-1PSU-5V wajib jika pakai >2 expansion adapter.
  • Maks. I/O total: 512 poin (termasuk remote I/O via CC-Link).
