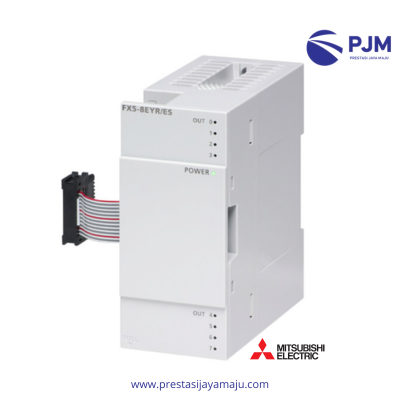

Jual Mitsubishi PLC FX5-8EYR/ES

FX5-8EYRES

Jual Mitsubishi PLC FX5-8EYR/ES

Mitsubishi PLC FX5-8EYR/ES adalah Digital Output Expansion Module yang dirancang khusus untuk seri Mitsubishi PLC FX5U dan FX5UC. Modul ini menambahkan 8 output relay ke sistem kontrol Anda, sehingga memungkinkan pengendalian lebih banyak perangkat seperti lampu, motor, katup, dan solenoid secara langsung.

Dengan relay output, modul ini dapat menangani beban arus yang lebih tinggi dan cocok digunakan untuk aplikasi yang memerlukan isolasi antara sinyal kontrol PLC dan perangkat lapangan. FX5-8EYR/ES menawarkan keandalan tinggi, instalasi cepat, dan kompatibilitas penuh dengan semua CPU utama seri FX5.

Perluas kendali sistem otomasi Anda dengan Mitsubishi PLC FX5-8EYR/ES
Nikmati performa stabil dan fleksibilitas tinggi untuk mengontrol berbagai perangkat industri.

💬 Hubungi Prestasi Jaya Maju sekarang untuk konsultasi teknis dan penawaran harga terbaik

Spesifikasi Teknis Mitsubishi PLC FX5-8EYR/ES

  • Seri Kompatibel: Mitsubishi PLC FX5U / FX5UC

  • Model: FX5-8EYR/ES

  • Jenis Modul: Digital Output (Relay Type) Expansion Module

  • Jumlah Output: 8 titik (relay contact)

  • Tegangan Output: 24V DC / 240V AC

  • Kapasitas Kontak: 2A per titik (resistive load)

  • Tipe Output: Relay (Form A contact)

  • Isolasi: Optocoupler + relay isolation

  • Waktu Respon: Sekitar 10 ms (ON/OFF)

  • Catu Daya Modul: Diambil dari CPU utama PLC

  • Terminal: Detachable terminal block (European type)

  • Indikator LED: 8 lampu status output

  • Pemasangan: Side-mounted (kanan unit utama FX5U/FX5UC)

  • Konsumsi Daya: ±2.0 W

  • Dimensi (WxHxD): 30 × 90 × 80 mm

  • Berat: ±150 gram

  • Sertifikasi: CE, UL, RoHS

  • Lingkungan Operasi: 0–55°C, kelembapan 10–90% RH

Tipe Expansion dan Add-On Modules untuk Mitsubishi PLC FX5 Series

1. Expansion Boards (Add-On di slot depan CPU)

Dipasang langsung di slot depan CPU (maks. 1 board per CPU).

Tipe Fungsi
FX5-232-BD RS-232C communication (1 channel)
FX5-485-BD RS-485 communication (1 channel)
FX5-422-BD-GOT GOT connection (RS-422)
FX5-4AD Analog input 4 channel (voltage/current)
FX5-4DA Analog output 4 channel (voltage/current)
FX5-8AD Analog input 8 channel (voltage/current/thermocouple/RTD)

2. Expansion Adapters (Add-On di sisi kiri CPU)

Dipasang di sisi kiri CPU (maks. 4 adapter per CPU, butuh FX5-1PSU-5V jika >2 adapter).

Tipe Fungsi
FX5-232ADP RS-232C (1 channel)
FX5-485ADP RS-485/RS-422 (1 channel)
FX5-4AD-ADP Analog input 4 channel
FX5-4DA-ADP Analog output 4 channel
FX5-CCL-MS CC-Link master (V2)
FX5-CCLGN-MS CC-Link IE Field Basic master
FX5-ASL-M AnyWireASLINK master

3. Expansion Modules (I/O & Special Function)

Dipasang di sisi kanan CPU/expansion (maks. 16 modul tergantung konfigurasi).

Digital I/O Expansion

Tipe Spesifikasi
FX5-8EX/ES 8 input (sink/source)
FX5-16EX/ES 16 input (sink/source)
FX5-8EYR/ES 8 output relay
FX5-8EYT/ESS 8 output transistor (source)
FX5-16EYR/ES 16 output relay
FX5-16EYT/ESS 16 output transistor (source)
FX5-32ER/ES 16 input + 16 output relay
FX5-32ET/ESS 16 input + 16 output transistor

Analog Expansion

Tipe Spesifikasi
FX5-4AD 4 channel analog input
FX5-4DA 4 channel analog output
FX5-8AD 8 channel analog input (multi-type)

Temperature Control

Tipe Spesifikasi
FX5-4LC 4 channel temperature control (TC/RTD)

High-Speed Counter

Tipe Spesifikasi
FX5-16ET/ES-H 16 input + high-speed counter (200 kHz)

Positioning

Tipe Spesifikasi
FX5-20PG-D 2-axis pulse output (open collector)
FX5-20PG-P 2-axis pulse output (differential)

Communication Expansion

Tipe Spesifikasi
FX5-CNV-BUS Bus conversion (ke FX3 series I/O)
FX5-C1PS-5V Power supply untuk expansion adapter

Catatan Penting

  • FX5UC (konektor type) butuh FX5-CNV-IFC untuk pakai expansion module terminal block.
  • FX5-1PSU-5V wajib jika pakai >2 expansion adapter.
  • Maks. I/O total: 512 poin (termasuk remote I/O via CC-Link).
