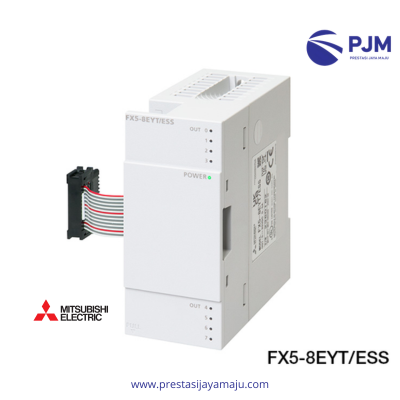

Jual Mitsubishi PLC FX5-8EYT/ESS

FX5-8EYTESS

Jual Mitsubishi PLC FX5-8EYT/ESS

Mitsubishi PLC FX5-8EYT/ESS adalah Digital Output Expansion Module (Transistor Type) yang dirancang untuk memperluas jumlah output pada Mitsubishi PLC FX5U dan FX5UC Series. Modul ini menambahkan 8 output transistor sink type, ideal untuk aplikasi berkecepatan tinggi dan sistem otomasi yang memerlukan respon cepat serta durabilitas tinggi.

Dengan desain kompak dan kompatibilitas sempurna, FX5-8EYT/ESS dapat digunakan untuk mengendalikan berbagai perangkat seperti relay eksternal, lampu indikator, motor driver, dan solenoid valve, menjadikannya solusi efisien untuk ekspansi sistem kontrol industri.

Kendalikan sistem otomasi Anda dengan kecepatan tinggi menggunakan Mitsubishi PLC FX5-8EYT/ESS!
Desain ringkas, performa cepat, dan keandalan tinggi untuk kebutuhan industri modern.

💬 Hubungi Prestasi Jaya Maju sekarang untuk konsultasi teknis dan penawaran harga terbaik

Spesifikasi Teknis Mitsubishi PLC FX5-8EYT/ESS

  • Seri Kompatibel: Mitsubishi PLC FX5U / FX5UC

  • Model: FX5-8EYT/ESS

  • Jenis Modul: Digital Output Expansion Module (Transistor Sink Type)

  • Jumlah Output: 8 titik

  • Tipe Output: Transistor (Sink)

  • Tegangan Output: 5–30V DC

  • Arus Maksimum per Titik: 0.5A

  • Arus Total Maksimum: 4A per modul

  • Waktu Respon: Kurang dari 0.2 ms (ON/OFF)

  • Isolasi Output: Photocoupler isolation

  • Indikator LED: 8 lampu status output

  • Catu Daya Modul: Diambil dari PLC utama (internal supply)

  • Terminal: Detachable terminal block

  • Pemasangan: Side-mounted di kanan unit utama PLC FX5U/FX5UC

  • Konsumsi Daya: ±2.0W

  • Dimensi (WxHxD): 30 × 90 × 80 mm

  • Berat: ±120 gram

  • Sertifikasi: CE, UL, RoHS

  • Lingkungan Operasi: 0–55°C, kelembapan 10–90% RH

Tipe Expansion dan Add-On Modules untuk Mitsubishi PLC FX5 Series

1. Expansion Boards (Add-On di slot depan CPU)

Dipasang langsung di slot depan CPU (maks. 1 board per CPU).

Tipe Fungsi
FX5-232-BD RS-232C communication (1 channel)
FX5-485-BD RS-485 communication (1 channel)
FX5-422-BD-GOT GOT connection (RS-422)
FX5-4AD Analog input 4 channel (voltage/current)
FX5-4DA Analog output 4 channel (voltage/current)
FX5-8AD Analog input 8 channel (voltage/current/thermocouple/RTD)

2. Expansion Adapters (Add-On di sisi kiri CPU)

Dipasang di sisi kiri CPU (maks. 4 adapter per CPU, butuh FX5-1PSU-5V jika >2 adapter).

Tipe Fungsi
FX5-232ADP RS-232C (1 channel)
FX5-485ADP RS-485/RS-422 (1 channel)
FX5-4AD-ADP Analog input 4 channel
FX5-4DA-ADP Analog output 4 channel
FX5-CCL-MS CC-Link master (V2)
FX5-CCLGN-MS CC-Link IE Field Basic master
FX5-ASL-M AnyWireASLINK master

3. Expansion Modules (I/O & Special Function)

Dipasang di sisi kanan CPU/expansion (maks. 16 modul tergantung konfigurasi).

Digital I/O Expansion

Tipe Spesifikasi
FX5-8EX/ES 8 input (sink/source)
FX5-16EX/ES 16 input (sink/source)
FX5-8EYR/ES 8 output relay
FX5-8EYT/ESS 8 output transistor (source)
FX5-16EYR/ES 16 output relay
FX5-16EYT/ESS 16 output transistor (source)
FX5-32ER/ES 16 input + 16 output relay
FX5-32ET/ESS 16 input + 16 output transistor

Analog Expansion

Tipe Spesifikasi
FX5-4AD 4 channel analog input
FX5-4DA 4 channel analog output
FX5-8AD 8 channel analog input (multi-type)

Temperature Control

Tipe Spesifikasi
FX5-4LC 4 channel temperature control (TC/RTD)

High-Speed Counter

Tipe Spesifikasi
FX5-16ET/ES-H 16 input + high-speed counter (200 kHz)

Positioning

Tipe Spesifikasi
FX5-20PG-D 2-axis pulse output (open collector)
FX5-20PG-P 2-axis pulse output (differential)

Communication Expansion

Tipe Spesifikasi
FX5-CNV-BUS Bus conversion (ke FX3 series I/O)
FX5-C1PS-5V Power supply untuk expansion adapter

Catatan Penting

  • FX5UC (konektor type) butuh FX5-CNV-IFC untuk pakai expansion module terminal block.
  • FX5-1PSU-5V wajib jika pakai >2 expansion adapter.
  • Maks. I/O total: 512 poin (termasuk remote I/O via CC-Link).
