Jual Mitsubishi PLC FX5 Series

Mitsubishi PLC FX5 Series (MELSEC iQ-F) — meliputi I/O modules, analog, komunikasi, motion, dan special function berdasarkan katalog resmi Mitsubishi Electric. 🔹 1. Digital I/O Expansion Modules ▪️ Input Modules FX5-8EX/ES – 8 input, 24 V DC FX5-16EX/ES – 16 input, 24 V DC FX5-32EX/ES – 32 input, 24 V DC FX5-64EX/ES – 64 input, 24 V DC ▪️ Output Modules FX5-8EY/ES – 8 relay output FX5-16EY/ES – 16 relay output FX5-32EY/ES – 32 relay output FX5-8ET/ES – 8 transistor output (sink) FX5-16ET/ES – 16 transistor output (sink) FX5-32ET/ES – 32 transistor output (sink) FX5-8EYT/ES – 8 transistor output (source) FX5-16EYT/ES – 16 transistor output (source) FX5-32EYT/ES – 32 transistor output (source) 🔹 2. Analog Modules ▪️ Analog Input FX5-4AD-ADP – 4 analog input (voltage/current) FX5-4AD-PT-ADP – 4 analog input (RTD/PT100/PT1000) FX5-4AD-TC-ADP – 4 analog input (thermocouple) FX5-8AD – 8 analog input channels ▪️ Analog Output FX5-2DA-ADP – 2 analog output (voltage/current) FX5-4DA – 4 analog output module ▪️ Mixed I/O FX5-4AD-2DA – 4 input + 2 output analog module 🔹 3. Communication & Network Modules FX5-ENET – Ethernet communication module FX5-ENET/IP – Ethernet IP module FX5-RS232-BD – RS-232 board FX5-485-BD – RS-485 board FX5-485ADP – RS-485 adapter FX5-CCLIE – CC-Link IE Field Basic module FX5-CCL-MS – CC-Link master module FX5-CCL-S – CC-Link slave module FX5-C24-ADP – Serial communication adapter (2-channel) FX5-SERIAL-IADP – Intelligent serial adapter FX5-WIFI – Wireless communication adapter (optional) 🔹 4. Motion Control / Positioning FX5-40SSC-SY – Simple motion module (4-axis control) FX5-80SSC-SY – Simple motion module (8-axis control) FX5-1PG-M – Pulse generator module (1 axis) FX5-2HC – High-speed counter module (2 channels) FX5-4HSCA-ADP – High-speed counter adapter (4 ch) 🔹 5. Special Function Modules FX5-PWM – Pulse width modulation module FX5-2LC – Temperature control module (PID loop) FX5-4LC – Temperature control module (4-loop) FX5-DIO-ADP – Digital I/O adapter FX5-CNV-IFC – Communication interface converter FX5-CNV-MB – Converter module for Modbus RTU 🔹 6. Memory & Option Modules FX5-EEPROM-32L – EEPROM memory (32 k steps) FX5-RAM-32L – RAM memory module FX5-SD-CARD – SD memory card (logging/program backup) FX5-BAT – Lithium backup battery 🔹 7. Power Supply & Interface Modules FX5-1PSU-5V – External power supply module FX5-PSU-EP – Power expansion module FX5-CNV-BDC – Connector conversion module for FX5UC FX5-CNV-IFC – Interface converter (FX5U↔FX5UC) 🔹 8. Adapter Modules (ADP Series) Dipakai langsung di sisi kiri CPU (compact mount): FX5-4AD-ADP FX5-2DA-ADP FX5-4AD-TC-ADP FX5-4AD-PT-ADP FX5-485-ADP FX5-C24-ADP

Jual Mitsubishi PLC FX5 Series

Mitsubishi PLC FX5 Series merupakan generasi terbaru dari MELSEC iQ-F Series yang menghadirkan performa tinggi, fleksibilitas, dan efisiensi luar biasa dalam sistem otomasi industri.
PLC ini dirancang untuk memenuhi kebutuhan kontrol mesin dan sistem otomatisasi modern dengan kecepatan pemrosesan tinggi, fitur komunikasi canggih, serta kemampuan ekspansi luas.

Sebagai penerus dari seri FX3U dan FX3G, FX5 Series menawarkan peningkatan besar dalam kapasitas memori, kemampuan motion control, kecepatan scan time, dan integrasi komunikasi.
PLC ini cocok untuk berbagai aplikasi — mulai dari sistem kontrol mesin kecil, proses produksi menengah, hingga sistem otomatisasi kompleks yang memerlukan konektivitas tinggi.

Tingkatkan efisiensi otomasi industri Anda dengan Mitsubishi PLC FX5 Series!
PLC generasi terbaru dengan performa tinggi, komunikasi lengkap, dan desain modular untuk berbagai kebutuhan kontrol industri.

💬 Hubungi Prestasi Jaya Maju sekarang untuk konsultasi teknis dan penawaran harga terbaik

Fitur Utama Mitsubishi PLC FX5 Series

  • Kecepatan pemrosesan tinggi: 34 ns per instruksi dasar

  • Komunikasi bawaan: Ethernet, RS-485, USB (standar)

  • Dukungan komunikasi tambahan: RS-232, Modbus, CC-Link, dan CANopen

  • High-Speed Counter: Hingga 200 kHz

  • Analog Input/Output & Motion Control: Built-in

  • Fungsi Data Logging & SD Card: Tersedia di semua model

  • Real-Time Clock (RTC): Bawaan

  • Ekspansi Modular: Mendukung hingga ratusan titik I/O

  • Dukungan Software: GX Works3

  • Desain Ringkas: Cocok untuk panel kontrol dengan ruang terbatas

Tipe Expansion dan Add-On Modules untuk Mitsubishi PLC FX5 Series

1. Expansion Boards (Add-On di slot depan CPU)

Dipasang langsung di slot depan CPU (maks. 1 board per CPU).

Tipe Fungsi
FX5-232-BD RS-232C communication (1 channel)
FX5-485-BD RS-485 communication (1 channel)
FX5-422-BD-GOT GOT connection (RS-422)
FX5-4AD Analog input 4 channel (voltage/current)
FX5-4DA Analog output 4 channel (voltage/current)
FX5-8AD Analog input 8 channel (voltage/current/thermocouple/RTD)

2. Expansion Adapters (Add-On di sisi kiri CPU)

Dipasang di sisi kiri CPU (maks. 4 adapter per CPU, butuh FX5-1PSU-5V jika >2 adapter).

Tipe Fungsi
FX5-232ADP RS-232C (1 channel)
FX5-485ADP RS-485/RS-422 (1 channel)
FX5-4AD-ADP Analog input 4 channel
FX5-4DA-ADP Analog output 4 channel
FX5-CCL-MS CC-Link master (V2)
FX5-CCLGN-MS CC-Link IE Field Basic master
FX5-ASL-M AnyWireASLINK master

3. Expansion Modules (I/O & Special Function)

Dipasang di sisi kanan CPU/expansion (maks. 16 modul tergantung konfigurasi).

Digital I/O Expansion

Tipe Spesifikasi
FX5-8EX/ES 8 input (sink/source)

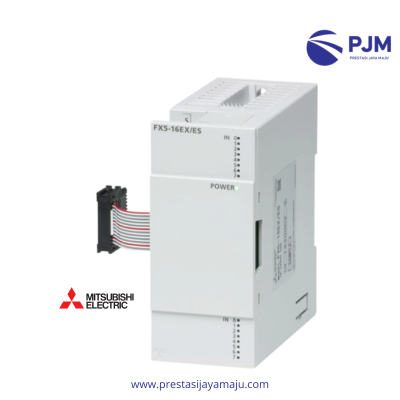

FX5-16EX/ES 16 input (sink/source)
FX5-8EYR/ES 8 output relay
FX5-8EYT/ESS 8 output transistor (source)
FX5-16EYR/ES 16 output relay
FX5-16EYT/ESS 16 output transistor (source)
FX5-32ER/ES 16 input + 16 output relay
FX5-32ET/ESS 16 input + 16 output transistor

Analog Expansion

Tipe Spesifikasi
FX5-4AD 4 channel analog input
FX5-4DA 4 channel analog output
FX5-8AD 8 channel analog input (multi-type)

Temperature Control

Tipe Spesifikasi
FX5-4LC 4 channel temperature control (TC/RTD)

High-Speed Counter

Tipe Spesifikasi
FX5-16ET/ES-H 16 input + high-speed counter (200 kHz)

Positioning

Tipe Spesifikasi
FX5-20PG-D 2-axis pulse output (open collector)
FX5-20PG-P 2-axis pulse output (differential)

Communication Expansion

Tipe Spesifikasi
FX5-CNV-BUS Bus conversion (ke FX3 series I/O)
FX5-C1PS-5V Power supply untuk expansion adapter

Catatan Penting

  • FX5UC (konektor type) butuh FX5-CNV-IFC untuk pakai expansion module terminal block.
  • FX5-1PSU-5V wajib jika pakai >2 expansion adapter.
  • Maks. I/O total: 512 poin (termasuk remote I/O via CC-Link).

Expansion Boards (Add-On di slot depan CPU)

Mitsubishi PLC, Mitsubishi FX5, Mitsubishi PLC FX5-232-BD, FX5-232-BD, PLC Mitsubishi, Mitsubishi Electric, PLC Communication Module, Modul Komunikasi PLC, RS232C Mitsubishi, PLC Industri, PLC Otomasi Industri, Mitsubishi Automation, Jual Mitsubishi PLC, Distributor Mitsubishi PLC, Supplier PLC Mitsubishi, PLC Communication Board, PLC FX5U Series, PLC FX5UC Series, Prestasi Jaya Maju

FX5-485-BD

FX5-422-BD-GOT

Expansion Adapters (Add-On di sisi kiri CPU)

FX5-8EXES

FX5-485ADP

FX5-4AD-ADP

FX5-4DA-ADP

FX5-CCL-MS

FX5-CCLGN-MS

FX5-ASL-M

Expansion Modules (I/O & Special Function)

Digital I/O Expansion

FX5-8EXES

Mitsubishi PLC FX5 Series (MELSEC iQ-F) — meliputi I/O modules, analog, komunikasi, motion, dan special function berdasarkan katalog resmi Mitsubishi Electric. 🔹 1. Digital I/O Expansion Modules ▪️ Input Modules FX5-8EX/ES – 8 input, 24 V DC FX5-16EX/ES – 16 input, 24 V DC FX5-32EX/ES – 32 input, 24 V DC FX5-64EX/ES – 64 input, 24 V DC ▪️ Output Modules FX5-8EY/ES – 8 relay output FX5-16EY/ES – 16 relay output FX5-32EY/ES – 32 relay output FX5-8ET/ES – 8 transistor output (sink) FX5-16ET/ES – 16 transistor output (sink) FX5-32ET/ES – 32 transistor output (sink) FX5-8EYT/ES – 8 transistor output (source) FX5-16EYT/ES – 16 transistor output (source) FX5-32EYT/ES – 32 transistor output (source) 🔹 2. Analog Modules ▪️ Analog Input FX5-4AD-ADP – 4 analog input (voltage/current) FX5-4AD-PT-ADP – 4 analog input (RTD/PT100/PT1000) FX5-4AD-TC-ADP – 4 analog input (thermocouple) FX5-8AD – 8 analog input channels ▪️ Analog Output FX5-2DA-ADP – 2 analog output (voltage/current) FX5-4DA – 4 analog output module ▪️ Mixed I/O FX5-4AD-2DA – 4 input + 2 output analog module 🔹 3. Communication & Network Modules FX5-ENET – Ethernet communication module FX5-ENET/IP – Ethernet IP module FX5-RS232-BD – RS-232 board FX5-485-BD – RS-485 board FX5-485ADP – RS-485 adapter FX5-CCLIE – CC-Link IE Field Basic module FX5-CCL-MS – CC-Link master module FX5-CCL-S – CC-Link slave module FX5-C24-ADP – Serial communication adapter (2-channel) FX5-SERIAL-IADP – Intelligent serial adapter FX5-WIFI – Wireless communication adapter (optional) 🔹 4. Motion Control / Positioning FX5-40SSC-SY – Simple motion module (4-axis control) FX5-80SSC-SY – Simple motion module (8-axis control) FX5-1PG-M – Pulse generator module (1 axis) FX5-2HC – High-speed counter module (2 channels) FX5-4HSCA-ADP – High-speed counter adapter (4 ch) 🔹 5. Special Function Modules FX5-PWM – Pulse width modulation module FX5-2LC – Temperature control module (PID loop) FX5-4LC – Temperature control module (4-loop) FX5-DIO-ADP – Digital I/O adapter FX5-CNV-IFC – Communication interface converter FX5-CNV-MB – Converter module for Modbus RTU 🔹 6. Memory & Option Modules FX5-EEPROM-32L – EEPROM memory (32 k steps) FX5-RAM-32L – RAM memory module FX5-SD-CARD – SD memory card (logging/program backup) FX5-BAT – Lithium backup battery 🔹 7. Power Supply & Interface Modules FX5-1PSU-5V – External power supply module FX5-PSU-EP – Power expansion module FX5-CNV-BDC – Connector conversion module for FX5UC FX5-CNV-IFC – Interface converter (FX5U↔FX5UC) 🔹 8. Adapter Modules (ADP Series) Dipakai langsung di sisi kiri CPU (compact mount): FX5-4AD-ADP FX5-2DA-ADP FX5-4AD-TC-ADP FX5-4AD-PT-ADP FX5-485-ADP FX5-C24-ADP

FX5-8EYRES

FX5-8EYTESS

Mitsubishi PLC FX5 Series (MELSEC iQ-F) — meliputi I/O modules, analog, komunikasi, motion, dan special function berdasarkan katalog resmi Mitsubishi Electric. 🔹 1. Digital I/O Expansion Modules ▪️ Input Modules FX5-8EX/ES – 8 input, 24 V DC FX5-16EX/ES – 16 input, 24 V DC FX5-32EX/ES – 32 input, 24 V DC FX5-64EX/ES – 64 input, 24 V DC ▪️ Output Modules FX5-8EY/ES – 8 relay output FX5-16EY/ES – 16 relay output FX5-32EY/ES – 32 relay output FX5-8ET/ES – 8 transistor output (sink) FX5-16ET/ES – 16 transistor output (sink) FX5-32ET/ES – 32 transistor output (sink) FX5-8EYT/ES – 8 transistor output (source) FX5-16EYT/ES – 16 transistor output (source) FX5-32EYT/ES – 32 transistor output (source) 🔹 2. Analog Modules ▪️ Analog Input FX5-4AD-ADP – 4 analog input (voltage/current) FX5-4AD-PT-ADP – 4 analog input (RTD/PT100/PT1000) FX5-4AD-TC-ADP – 4 analog input (thermocouple) FX5-8AD – 8 analog input channels ▪️ Analog Output FX5-2DA-ADP – 2 analog output (voltage/current) FX5-4DA – 4 analog output module ▪️ Mixed I/O FX5-4AD-2DA – 4 input + 2 output analog module 🔹 3. Communication & Network Modules FX5-ENET – Ethernet communication module FX5-ENET/IP – Ethernet IP module FX5-RS232-BD – RS-232 board FX5-485-BD – RS-485 board FX5-485ADP – RS-485 adapter FX5-CCLIE – CC-Link IE Field Basic module FX5-CCL-MS – CC-Link master module FX5-CCL-S – CC-Link slave module FX5-C24-ADP – Serial communication adapter (2-channel) FX5-SERIAL-IADP – Intelligent serial adapter FX5-WIFI – Wireless communication adapter (optional) 🔹 4. Motion Control / Positioning FX5-40SSC-SY – Simple motion module (4-axis control) FX5-80SSC-SY – Simple motion module (8-axis control) FX5-1PG-M – Pulse generator module (1 axis) FX5-2HC – High-speed counter module (2 channels) FX5-4HSCA-ADP – High-speed counter adapter (4 ch) 🔹 5. Special Function Modules FX5-PWM – Pulse width modulation module FX5-2LC – Temperature control module (PID loop) FX5-4LC – Temperature control module (4-loop) FX5-DIO-ADP – Digital I/O adapter FX5-CNV-IFC – Communication interface converter FX5-CNV-MB – Converter module for Modbus RTU 🔹 6. Memory & Option Modules FX5-EEPROM-32L – EEPROM memory (32 k steps) FX5-RAM-32L – RAM memory module FX5-SD-CARD – SD memory card (logging/program backup) FX5-BAT – Lithium backup battery 🔹 7. Power Supply & Interface Modules FX5-1PSU-5V – External power supply module FX5-PSU-EP – Power expansion module FX5-CNV-BDC – Connector conversion module for FX5UC FX5-CNV-IFC – Interface converter (FX5U↔FX5UC) 🔹 8. Adapter Modules (ADP Series) Dipakai langsung di sisi kiri CPU (compact mount): FX5-4AD-ADP FX5-2DA-ADP FX5-4AD-TC-ADP FX5-4AD-PT-ADP FX5-485-ADP FX5-C24-ADP

Mitsubishi PLC FX5 Series (MELSEC iQ-F) — meliputi I/O modules, analog, komunikasi, motion, dan special function berdasarkan katalog resmi Mitsubishi Electric. 🔹 1. Digital I/O Expansion Modules ▪️ Input Modules FX5-8EX/ES – 8 input, 24 V DC FX5-16EX/ES – 16 input, 24 V DC FX5-32EX/ES – 32 input, 24 V DC FX5-64EX/ES – 64 input, 24 V DC ▪️ Output Modules FX5-8EY/ES – 8 relay output FX5-16EY/ES – 16 relay output FX5-32EY/ES – 32 relay output FX5-8ET/ES – 8 transistor output (sink) FX5-16ET/ES – 16 transistor output (sink) FX5-32ET/ES – 32 transistor output (sink) FX5-8EYT/ES – 8 transistor output (source) FX5-16EYT/ES – 16 transistor output (source) FX5-32EYT/ES – 32 transistor output (source) 🔹 2. Analog Modules ▪️ Analog Input FX5-4AD-ADP – 4 analog input (voltage/current) FX5-4AD-PT-ADP – 4 analog input (RTD/PT100/PT1000) FX5-4AD-TC-ADP – 4 analog input (thermocouple) FX5-8AD – 8 analog input channels ▪️ Analog Output FX5-2DA-ADP – 2 analog output (voltage/current) FX5-4DA – 4 analog output module ▪️ Mixed I/O FX5-4AD-2DA – 4 input + 2 output analog module 🔹 3. Communication & Network Modules FX5-ENET – Ethernet communication module FX5-ENET/IP – Ethernet IP module FX5-RS232-BD – RS-232 board FX5-485-BD – RS-485 board FX5-485ADP – RS-485 adapter FX5-CCLIE – CC-Link IE Field Basic module FX5-CCL-MS – CC-Link master module FX5-CCL-S – CC-Link slave module FX5-C24-ADP – Serial communication adapter (2-channel) FX5-SERIAL-IADP – Intelligent serial adapter FX5-WIFI – Wireless communication adapter (optional) 🔹 4. Motion Control / Positioning FX5-40SSC-SY – Simple motion module (4-axis control) FX5-80SSC-SY – Simple motion module (8-axis control) FX5-1PG-M – Pulse generator module (1 axis) FX5-2HC – High-speed counter module (2 channels) FX5-4HSCA-ADP – High-speed counter adapter (4 ch) 🔹 5. Special Function Modules FX5-PWM – Pulse width modulation module FX5-2LC – Temperature control module (PID loop) FX5-4LC – Temperature control module (4-loop) FX5-DIO-ADP – Digital I/O adapter FX5-CNV-IFC – Communication interface converter FX5-CNV-MB – Converter module for Modbus RTU 🔹 6. Memory & Option Modules FX5-EEPROM-32L – EEPROM memory (32 k steps) FX5-RAM-32L – RAM memory module FX5-SD-CARD – SD memory card (logging/program backup) FX5-BAT – Lithium backup battery 🔹 7. Power Supply & Interface Modules FX5-1PSU-5V – External power supply module FX5-PSU-EP – Power expansion module FX5-CNV-BDC – Connector conversion module for FX5UC FX5-CNV-IFC – Interface converter (FX5U↔FX5UC) 🔹 8. Adapter Modules (ADP Series) Dipakai langsung di sisi kiri CPU (compact mount): FX5-4AD-ADP FX5-2DA-ADP FX5-4AD-TC-ADP FX5-4AD-PT-ADP FX5-485-ADP FX5-C24-ADP

Mitsubishi PLC FX5 Series (MELSEC iQ-F) — meliputi I/O modules, analog, komunikasi, motion, dan special function berdasarkan katalog resmi Mitsubishi Electric. 🔹 1. Digital I/O Expansion Modules ▪️ Input Modules FX5-8EX/ES – 8 input, 24 V DC FX5-16EX/ES – 16 input, 24 V DC FX5-32EX/ES – 32 input, 24 V DC FX5-64EX/ES – 64 input, 24 V DC ▪️ Output Modules FX5-8EY/ES – 8 relay output FX5-16EY/ES – 16 relay output FX5-32EY/ES – 32 relay output FX5-8ET/ES – 8 transistor output (sink) FX5-16ET/ES – 16 transistor output (sink) FX5-32ET/ES – 32 transistor output (sink) FX5-8EYT/ES – 8 transistor output (source) FX5-16EYT/ES – 16 transistor output (source) FX5-32EYT/ES – 32 transistor output (source) 🔹 2. Analog Modules ▪️ Analog Input FX5-4AD-ADP – 4 analog input (voltage/current) FX5-4AD-PT-ADP – 4 analog input (RTD/PT100/PT1000) FX5-4AD-TC-ADP – 4 analog input (thermocouple) FX5-8AD – 8 analog input channels ▪️ Analog Output FX5-2DA-ADP – 2 analog output (voltage/current) FX5-4DA – 4 analog output module ▪️ Mixed I/O FX5-4AD-2DA – 4 input + 2 output analog module 🔹 3. Communication & Network Modules FX5-ENET – Ethernet communication module FX5-ENET/IP – Ethernet IP module FX5-RS232-BD – RS-232 board FX5-485-BD – RS-485 board FX5-485ADP – RS-485 adapter FX5-CCLIE – CC-Link IE Field Basic module FX5-CCL-MS – CC-Link master module FX5-CCL-S – CC-Link slave module FX5-C24-ADP – Serial communication adapter (2-channel) FX5-SERIAL-IADP – Intelligent serial adapter FX5-WIFI – Wireless communication adapter (optional) 🔹 4. Motion Control / Positioning FX5-40SSC-SY – Simple motion module (4-axis control) FX5-80SSC-SY – Simple motion module (8-axis control) FX5-1PG-M – Pulse generator module (1 axis) FX5-2HC – High-speed counter module (2 channels) FX5-4HSCA-ADP – High-speed counter adapter (4 ch) 🔹 5. Special Function Modules FX5-PWM – Pulse width modulation module FX5-2LC – Temperature control module (PID loop) FX5-4LC – Temperature control module (4-loop) FX5-DIO-ADP – Digital I/O adapter FX5-CNV-IFC – Communication interface converter FX5-CNV-MB – Converter module for Modbus RTU 🔹 6. Memory & Option Modules FX5-EEPROM-32L – EEPROM memory (32 k steps) FX5-RAM-32L – RAM memory module FX5-SD-CARD – SD memory card (logging/program backup) FX5-BAT – Lithium backup battery 🔹 7. Power Supply & Interface Modules FX5-1PSU-5V – External power supply module FX5-PSU-EP – Power expansion module FX5-CNV-BDC – Connector conversion module for FX5UC FX5-CNV-IFC – Interface converter (FX5U↔FX5UC) 🔹 8. Adapter Modules (ADP Series) Dipakai langsung di sisi kiri CPU (compact mount): FX5-4AD-ADP FX5-2DA-ADP FX5-4AD-TC-ADP FX5-4AD-PT-ADP FX5-485-ADP FX5-C24-ADP

Mitsubishi PLC FX5 Series (MELSEC iQ-F) — meliputi I/O modules, analog, komunikasi, motion, dan special function berdasarkan katalog resmi Mitsubishi Electric. 🔹 1. Digital I/O Expansion Modules ▪️ Input Modules FX5-8EX/ES – 8 input, 24 V DC FX5-16EX/ES – 16 input, 24 V DC FX5-32EX/ES – 32 input, 24 V DC FX5-64EX/ES – 64 input, 24 V DC ▪️ Output Modules FX5-8EY/ES – 8 relay output FX5-16EY/ES – 16 relay output FX5-32EY/ES – 32 relay output FX5-8ET/ES – 8 transistor output (sink) FX5-16ET/ES – 16 transistor output (sink) FX5-32ET/ES – 32 transistor output (sink) FX5-8EYT/ES – 8 transistor output (source) FX5-16EYT/ES – 16 transistor output (source) FX5-32EYT/ES – 32 transistor output (source) 🔹 2. Analog Modules ▪️ Analog Input FX5-4AD-ADP – 4 analog input (voltage/current) FX5-4AD-PT-ADP – 4 analog input (RTD/PT100/PT1000) FX5-4AD-TC-ADP – 4 analog input (thermocouple) FX5-8AD – 8 analog input channels ▪️ Analog Output FX5-2DA-ADP – 2 analog output (voltage/current) FX5-4DA – 4 analog output module ▪️ Mixed I/O FX5-4AD-2DA – 4 input + 2 output analog module 🔹 3. Communication & Network Modules FX5-ENET – Ethernet communication module FX5-ENET/IP – Ethernet IP module FX5-RS232-BD – RS-232 board FX5-485-BD – RS-485 board FX5-485ADP – RS-485 adapter FX5-CCLIE – CC-Link IE Field Basic module FX5-CCL-MS – CC-Link master module FX5-CCL-S – CC-Link slave module FX5-C24-ADP – Serial communication adapter (2-channel) FX5-SERIAL-IADP – Intelligent serial adapter FX5-WIFI – Wireless communication adapter (optional) 🔹 4. Motion Control / Positioning FX5-40SSC-SY – Simple motion module (4-axis control) FX5-80SSC-SY – Simple motion module (8-axis control) FX5-1PG-M – Pulse generator module (1 axis) FX5-2HC – High-speed counter module (2 channels) FX5-4HSCA-ADP – High-speed counter adapter (4 ch) 🔹 5. Special Function Modules FX5-PWM – Pulse width modulation module FX5-2LC – Temperature control module (PID loop) FX5-4LC – Temperature control module (4-loop) FX5-DIO-ADP – Digital I/O adapter FX5-CNV-IFC – Communication interface converter FX5-CNV-MB – Converter module for Modbus RTU 🔹 6. Memory & Option Modules FX5-EEPROM-32L – EEPROM memory (32 k steps) FX5-RAM-32L – RAM memory module FX5-SD-CARD – SD memory card (logging/program backup) FX5-BAT – Lithium backup battery 🔹 7. Power Supply & Interface Modules FX5-1PSU-5V – External power supply module FX5-PSU-EP – Power expansion module FX5-CNV-BDC – Connector conversion module for FX5UC FX5-CNV-IFC – Interface converter (FX5U↔FX5UC) 🔹 8. Adapter Modules (ADP Series) Dipakai langsung di sisi kiri CPU (compact mount): FX5-4AD-ADP FX5-2DA-ADP FX5-4AD-TC-ADP FX5-4AD-PT-ADP FX5-485-ADP FX5-C24-ADP

Analog Expansion

Mitsubishi PLC FX5 Series (MELSEC iQ-F) — meliputi I/O modules, analog, komunikasi, motion, dan special function berdasarkan katalog resmi Mitsubishi Electric. 🔹 1. Digital I/O Expansion Modules ▪️ Input Modules FX5-8EX/ES – 8 input, 24 V DC FX5-16EX/ES – 16 input, 24 V DC FX5-32EX/ES – 32 input, 24 V DC FX5-64EX/ES – 64 input, 24 V DC ▪️ Output Modules FX5-8EY/ES – 8 relay output FX5-16EY/ES – 16 relay output FX5-32EY/ES – 32 relay output FX5-8ET/ES – 8 transistor output (sink) FX5-16ET/ES – 16 transistor output (sink) FX5-32ET/ES – 32 transistor output (sink) FX5-8EYT/ES – 8 transistor output (source) FX5-16EYT/ES – 16 transistor output (source) FX5-32EYT/ES – 32 transistor output (source) 🔹 2. Analog Modules ▪️ Analog Input FX5-4AD-ADP – 4 analog input (voltage/current) FX5-4AD-PT-ADP – 4 analog input (RTD/PT100/PT1000) FX5-4AD-TC-ADP – 4 analog input (thermocouple) FX5-8AD – 8 analog input channels ▪️ Analog Output FX5-2DA-ADP – 2 analog output (voltage/current) FX5-4DA – 4 analog output module ▪️ Mixed I/O FX5-4AD-2DA – 4 input + 2 output analog module 🔹 3. Communication & Network Modules FX5-ENET – Ethernet communication module FX5-ENET/IP – Ethernet IP module FX5-RS232-BD – RS-232 board FX5-485-BD – RS-485 board FX5-485ADP – RS-485 adapter FX5-CCLIE – CC-Link IE Field Basic module FX5-CCL-MS – CC-Link master module FX5-CCL-S – CC-Link slave module FX5-C24-ADP – Serial communication adapter (2-channel) FX5-SERIAL-IADP – Intelligent serial adapter FX5-WIFI – Wireless communication adapter (optional) 🔹 4. Motion Control / Positioning FX5-40SSC-SY – Simple motion module (4-axis control) FX5-80SSC-SY – Simple motion module (8-axis control) FX5-1PG-M – Pulse generator module (1 axis) FX5-2HC – High-speed counter module (2 channels) FX5-4HSCA-ADP – High-speed counter adapter (4 ch) 🔹 5. Special Function Modules FX5-PWM – Pulse width modulation module FX5-2LC – Temperature control module (PID loop) FX5-4LC – Temperature control module (4-loop) FX5-DIO-ADP – Digital I/O adapter FX5-CNV-IFC – Communication interface converter FX5-CNV-MB – Converter module for Modbus RTU 🔹 6. Memory & Option Modules FX5-EEPROM-32L – EEPROM memory (32 k steps) FX5-RAM-32L – RAM memory module FX5-SD-CARD – SD memory card (logging/program backup) FX5-BAT – Lithium backup battery 🔹 7. Power Supply & Interface Modules FX5-1PSU-5V – External power supply module FX5-PSU-EP – Power expansion module FX5-CNV-BDC – Connector conversion module for FX5UC FX5-CNV-IFC – Interface converter (FX5U↔FX5UC) 🔹 8. Adapter Modules (ADP Series) Dipakai langsung di sisi kiri CPU (compact mount): FX5-4AD-ADP FX5-2DA-ADP FX5-4AD-TC-ADP FX5-4AD-PT-ADP FX5-485-ADP FX5-C24-ADP

Mitsubishi PLC FX5 Series (MELSEC iQ-F) — meliputi I/O modules, analog, komunikasi, motion, dan special function berdasarkan katalog resmi Mitsubishi Electric. 🔹 1. Digital I/O Expansion Modules ▪️ Input Modules FX5-8EX/ES – 8 input, 24 V DC FX5-16EX/ES – 16 input, 24 V DC FX5-32EX/ES – 32 input, 24 V DC FX5-64EX/ES – 64 input, 24 V DC ▪️ Output Modules FX5-8EY/ES – 8 relay output FX5-16EY/ES – 16 relay output FX5-32EY/ES – 32 relay output FX5-8ET/ES – 8 transistor output (sink) FX5-16ET/ES – 16 transistor output (sink) FX5-32ET/ES – 32 transistor output (sink) FX5-8EYT/ES – 8 transistor output (source) FX5-16EYT/ES – 16 transistor output (source) FX5-32EYT/ES – 32 transistor output (source) 🔹 2. Analog Modules ▪️ Analog Input FX5-4AD-ADP – 4 analog input (voltage/current) FX5-4AD-PT-ADP – 4 analog input (RTD/PT100/PT1000) FX5-4AD-TC-ADP – 4 analog input (thermocouple) FX5-8AD – 8 analog input channels ▪️ Analog Output FX5-2DA-ADP – 2 analog output (voltage/current) FX5-4DA – 4 analog output module ▪️ Mixed I/O FX5-4AD-2DA – 4 input + 2 output analog module 🔹 3. Communication & Network Modules FX5-ENET – Ethernet communication module FX5-ENET/IP – Ethernet IP module FX5-RS232-BD – RS-232 board FX5-485-BD – RS-485 board FX5-485ADP – RS-485 adapter FX5-CCLIE – CC-Link IE Field Basic module FX5-CCL-MS – CC-Link master module FX5-CCL-S – CC-Link slave module FX5-C24-ADP – Serial communication adapter (2-channel) FX5-SERIAL-IADP – Intelligent serial adapter FX5-WIFI – Wireless communication adapter (optional) 🔹 4. Motion Control / Positioning FX5-40SSC-SY – Simple motion module (4-axis control) FX5-80SSC-SY – Simple motion module (8-axis control) FX5-1PG-M – Pulse generator module (1 axis) FX5-2HC – High-speed counter module (2 channels) FX5-4HSCA-ADP – High-speed counter adapter (4 ch) 🔹 5. Special Function Modules FX5-PWM – Pulse width modulation module FX5-2LC – Temperature control module (PID loop) FX5-4LC – Temperature control module (4-loop) FX5-DIO-ADP – Digital I/O adapter FX5-CNV-IFC – Communication interface converter FX5-CNV-MB – Converter module for Modbus RTU 🔹 6. Memory & Option Modules FX5-EEPROM-32L – EEPROM memory (32 k steps) FX5-RAM-32L – RAM memory module FX5-SD-CARD – SD memory card (logging/program backup) FX5-BAT – Lithium backup battery 🔹 7. Power Supply & Interface Modules FX5-1PSU-5V – External power supply module FX5-PSU-EP – Power expansion module FX5-CNV-BDC – Connector conversion module for FX5UC FX5-CNV-IFC – Interface converter (FX5U↔FX5UC) 🔹 8. Adapter Modules (ADP Series) Dipakai langsung di sisi kiri CPU (compact mount): FX5-4AD-ADP FX5-2DA-ADP FX5-4AD-TC-ADP FX5-4AD-PT-ADP FX5-485-ADP FX5-C24-ADP

Mitsubishi PLC FX5 Series (MELSEC iQ-F) — meliputi I/O modules, analog, komunikasi, motion, dan special function berdasarkan katalog resmi Mitsubishi Electric. 🔹 1. Digital I/O Expansion Modules ▪️ Input Modules FX5-8EX/ES – 8 input, 24 V DC FX5-16EX/ES – 16 input, 24 V DC FX5-32EX/ES – 32 input, 24 V DC FX5-64EX/ES – 64 input, 24 V DC ▪️ Output Modules FX5-8EY/ES – 8 relay output FX5-16EY/ES – 16 relay output FX5-32EY/ES – 32 relay output FX5-8ET/ES – 8 transistor output (sink) FX5-16ET/ES – 16 transistor output (sink) FX5-32ET/ES – 32 transistor output (sink) FX5-8EYT/ES – 8 transistor output (source) FX5-16EYT/ES – 16 transistor output (source) FX5-32EYT/ES – 32 transistor output (source) 🔹 2. Analog Modules ▪️ Analog Input FX5-4AD-ADP – 4 analog input (voltage/current) FX5-4AD-PT-ADP – 4 analog input (RTD/PT100/PT1000) FX5-4AD-TC-ADP – 4 analog input (thermocouple) FX5-8AD – 8 analog input channels ▪️ Analog Output FX5-2DA-ADP – 2 analog output (voltage/current) FX5-4DA – 4 analog output module ▪️ Mixed I/O FX5-4AD-2DA – 4 input + 2 output analog module 🔹 3. Communication & Network Modules FX5-ENET – Ethernet communication module FX5-ENET/IP – Ethernet IP module FX5-RS232-BD – RS-232 board FX5-485-BD – RS-485 board FX5-485ADP – RS-485 adapter FX5-CCLIE – CC-Link IE Field Basic module FX5-CCL-MS – CC-Link master module FX5-CCL-S – CC-Link slave module FX5-C24-ADP – Serial communication adapter (2-channel) FX5-SERIAL-IADP – Intelligent serial adapter FX5-WIFI – Wireless communication adapter (optional) 🔹 4. Motion Control / Positioning FX5-40SSC-SY – Simple motion module (4-axis control) FX5-80SSC-SY – Simple motion module (8-axis control) FX5-1PG-M – Pulse generator module (1 axis) FX5-2HC – High-speed counter module (2 channels) FX5-4HSCA-ADP – High-speed counter adapter (4 ch) 🔹 5. Special Function Modules FX5-PWM – Pulse width modulation module FX5-2LC – Temperature control module (PID loop) FX5-4LC – Temperature control module (4-loop) FX5-DIO-ADP – Digital I/O adapter FX5-CNV-IFC – Communication interface converter FX5-CNV-MB – Converter module for Modbus RTU 🔹 6. Memory & Option Modules FX5-EEPROM-32L – EEPROM memory (32 k steps) FX5-RAM-32L – RAM memory module FX5-SD-CARD – SD memory card (logging/program backup) FX5-BAT – Lithium backup battery 🔹 7. Power Supply & Interface Modules FX5-1PSU-5V – External power supply module FX5-PSU-EP – Power expansion module FX5-CNV-BDC – Connector conversion module for FX5UC FX5-CNV-IFC – Interface converter (FX5U↔FX5UC) 🔹 8. Adapter Modules (ADP Series) Dipakai langsung di sisi kiri CPU (compact mount): FX5-4AD-ADP FX5-2DA-ADP FX5-4AD-TC-ADP FX5-4AD-PT-ADP FX5-485-ADP FX5-C24-ADP

Temperature Control

Mitsubishi PLC FX5 Series (MELSEC iQ-F) — meliputi I/O modules, analog, komunikasi, motion, dan special function berdasarkan katalog resmi Mitsubishi Electric. 🔹 1. Digital I/O Expansion Modules ▪️ Input Modules FX5-8EX/ES – 8 input, 24 V DC FX5-16EX/ES – 16 input, 24 V DC FX5-32EX/ES – 32 input, 24 V DC FX5-64EX/ES – 64 input, 24 V DC ▪️ Output Modules FX5-8EY/ES – 8 relay output FX5-16EY/ES – 16 relay output FX5-32EY/ES – 32 relay output FX5-8ET/ES – 8 transistor output (sink) FX5-16ET/ES – 16 transistor output (sink) FX5-32ET/ES – 32 transistor output (sink) FX5-8EYT/ES – 8 transistor output (source) FX5-16EYT/ES – 16 transistor output (source) FX5-32EYT/ES – 32 transistor output (source) 🔹 2. Analog Modules ▪️ Analog Input FX5-4AD-ADP – 4 analog input (voltage/current) FX5-4AD-PT-ADP – 4 analog input (RTD/PT100/PT1000) FX5-4AD-TC-ADP – 4 analog input (thermocouple) FX5-8AD – 8 analog input channels ▪️ Analog Output FX5-2DA-ADP – 2 analog output (voltage/current) FX5-4DA – 4 analog output module ▪️ Mixed I/O FX5-4AD-2DA – 4 input + 2 output analog module 🔹 3. Communication & Network Modules FX5-ENET – Ethernet communication module FX5-ENET/IP – Ethernet IP module FX5-RS232-BD – RS-232 board FX5-485-BD – RS-485 board FX5-485ADP – RS-485 adapter FX5-CCLIE – CC-Link IE Field Basic module FX5-CCL-MS – CC-Link master module FX5-CCL-S – CC-Link slave module FX5-C24-ADP – Serial communication adapter (2-channel) FX5-SERIAL-IADP – Intelligent serial adapter FX5-WIFI – Wireless communication adapter (optional) 🔹 4. Motion Control / Positioning FX5-40SSC-SY – Simple motion module (4-axis control) FX5-80SSC-SY – Simple motion module (8-axis control) FX5-1PG-M – Pulse generator module (1 axis) FX5-2HC – High-speed counter module (2 channels) FX5-4HSCA-ADP – High-speed counter adapter (4 ch) 🔹 5. Special Function Modules FX5-PWM – Pulse width modulation module FX5-2LC – Temperature control module (PID loop) FX5-4LC – Temperature control module (4-loop) FX5-DIO-ADP – Digital I/O adapter FX5-CNV-IFC – Communication interface converter FX5-CNV-MB – Converter module for Modbus RTU 🔹 6. Memory & Option Modules FX5-EEPROM-32L – EEPROM memory (32 k steps) FX5-RAM-32L – RAM memory module FX5-SD-CARD – SD memory card (logging/program backup) FX5-BAT – Lithium backup battery 🔹 7. Power Supply & Interface Modules FX5-1PSU-5V – External power supply module FX5-PSU-EP – Power expansion module FX5-CNV-BDC – Connector conversion module for FX5UC FX5-CNV-IFC – Interface converter (FX5U↔FX5UC) 🔹 8. Adapter Modules (ADP Series) Dipakai langsung di sisi kiri CPU (compact mount): FX5-4AD-ADP FX5-2DA-ADP FX5-4AD-TC-ADP FX5-4AD-PT-ADP FX5-485-ADP FX5-C24-ADP

High-Speed Counter

Mitsubishi PLC FX5 Series (MELSEC iQ-F) — meliputi I/O modules, analog, komunikasi, motion, dan special function berdasarkan katalog resmi Mitsubishi Electric. 🔹 1. Digital I/O Expansion Modules ▪️ Input Modules FX5-8EX/ES – 8 input, 24 V DC FX5-16EX/ES – 16 input, 24 V DC FX5-32EX/ES – 32 input, 24 V DC FX5-64EX/ES – 64 input, 24 V DC ▪️ Output Modules FX5-8EY/ES – 8 relay output FX5-16EY/ES – 16 relay output FX5-32EY/ES – 32 relay output FX5-8ET/ES – 8 transistor output (sink) FX5-16ET/ES – 16 transistor output (sink) FX5-32ET/ES – 32 transistor output (sink) FX5-8EYT/ES – 8 transistor output (source) FX5-16EYT/ES – 16 transistor output (source) FX5-32EYT/ES – 32 transistor output (source) 🔹 2. Analog Modules ▪️ Analog Input FX5-4AD-ADP – 4 analog input (voltage/current) FX5-4AD-PT-ADP – 4 analog input (RTD/PT100/PT1000) FX5-4AD-TC-ADP – 4 analog input (thermocouple) FX5-8AD – 8 analog input channels ▪️ Analog Output FX5-2DA-ADP – 2 analog output (voltage/current) FX5-4DA – 4 analog output module ▪️ Mixed I/O FX5-4AD-2DA – 4 input + 2 output analog module 🔹 3. Communication & Network Modules FX5-ENET – Ethernet communication module FX5-ENET/IP – Ethernet IP module FX5-RS232-BD – RS-232 board FX5-485-BD – RS-485 board FX5-485ADP – RS-485 adapter FX5-CCLIE – CC-Link IE Field Basic module FX5-CCL-MS – CC-Link master module FX5-CCL-S – CC-Link slave module FX5-C24-ADP – Serial communication adapter (2-channel) FX5-SERIAL-IADP – Intelligent serial adapter FX5-WIFI – Wireless communication adapter (optional) 🔹 4. Motion Control / Positioning FX5-40SSC-SY – Simple motion module (4-axis control) FX5-80SSC-SY – Simple motion module (8-axis control) FX5-1PG-M – Pulse generator module (1 axis) FX5-2HC – High-speed counter module (2 channels) FX5-4HSCA-ADP – High-speed counter adapter (4 ch) 🔹 5. Special Function Modules FX5-PWM – Pulse width modulation module FX5-2LC – Temperature control module (PID loop) FX5-4LC – Temperature control module (4-loop) FX5-DIO-ADP – Digital I/O adapter FX5-CNV-IFC – Communication interface converter FX5-CNV-MB – Converter module for Modbus RTU 🔹 6. Memory & Option Modules FX5-EEPROM-32L – EEPROM memory (32 k steps) FX5-RAM-32L – RAM memory module FX5-SD-CARD – SD memory card (logging/program backup) FX5-BAT – Lithium backup battery 🔹 7. Power Supply & Interface Modules FX5-1PSU-5V – External power supply module FX5-PSU-EP – Power expansion module FX5-CNV-BDC – Connector conversion module for FX5UC FX5-CNV-IFC – Interface converter (FX5U↔FX5UC) 🔹 8. Adapter Modules (ADP Series) Dipakai langsung di sisi kiri CPU (compact mount): FX5-4AD-ADP FX5-2DA-ADP FX5-4AD-TC-ADP FX5-4AD-PT-ADP FX5-485-ADP FX5-C24-ADP

Positioning

Mitsubishi PLC FX5 Series (MELSEC iQ-F) — meliputi I/O modules, analog, komunikasi, motion, dan special function berdasarkan katalog resmi Mitsubishi Electric. 🔹 1. Digital I/O Expansion Modules ▪️ Input Modules FX5-8EX/ES – 8 input, 24 V DC FX5-16EX/ES – 16 input, 24 V DC FX5-32EX/ES – 32 input, 24 V DC FX5-64EX/ES – 64 input, 24 V DC ▪️ Output Modules FX5-8EY/ES – 8 relay output FX5-16EY/ES – 16 relay output FX5-32EY/ES – 32 relay output FX5-8ET/ES – 8 transistor output (sink) FX5-16ET/ES – 16 transistor output (sink) FX5-32ET/ES – 32 transistor output (sink) FX5-8EYT/ES – 8 transistor output (source) FX5-16EYT/ES – 16 transistor output (source) FX5-32EYT/ES – 32 transistor output (source) 🔹 2. Analog Modules ▪️ Analog Input FX5-4AD-ADP – 4 analog input (voltage/current) FX5-4AD-PT-ADP – 4 analog input (RTD/PT100/PT1000) FX5-4AD-TC-ADP – 4 analog input (thermocouple) FX5-8AD – 8 analog input channels ▪️ Analog Output FX5-2DA-ADP – 2 analog output (voltage/current) FX5-4DA – 4 analog output module ▪️ Mixed I/O FX5-4AD-2DA – 4 input + 2 output analog module 🔹 3. Communication & Network Modules FX5-ENET – Ethernet communication module FX5-ENET/IP – Ethernet IP module FX5-RS232-BD – RS-232 board FX5-485-BD – RS-485 board FX5-485ADP – RS-485 adapter FX5-CCLIE – CC-Link IE Field Basic module FX5-CCL-MS – CC-Link master module FX5-CCL-S – CC-Link slave module FX5-C24-ADP – Serial communication adapter (2-channel) FX5-SERIAL-IADP – Intelligent serial adapter FX5-WIFI – Wireless communication adapter (optional) 🔹 4. Motion Control / Positioning FX5-40SSC-SY – Simple motion module (4-axis control) FX5-80SSC-SY – Simple motion module (8-axis control) FX5-1PG-M – Pulse generator module (1 axis) FX5-2HC – High-speed counter module (2 channels) FX5-4HSCA-ADP – High-speed counter adapter (4 ch) 🔹 5. Special Function Modules FX5-PWM – Pulse width modulation module FX5-2LC – Temperature control module (PID loop) FX5-4LC – Temperature control module (4-loop) FX5-DIO-ADP – Digital I/O adapter FX5-CNV-IFC – Communication interface converter FX5-CNV-MB – Converter module for Modbus RTU 🔹 6. Memory & Option Modules FX5-EEPROM-32L – EEPROM memory (32 k steps) FX5-RAM-32L – RAM memory module FX5-SD-CARD – SD memory card (logging/program backup) FX5-BAT – Lithium backup battery 🔹 7. Power Supply & Interface Modules FX5-1PSU-5V – External power supply module FX5-PSU-EP – Power expansion module FX5-CNV-BDC – Connector conversion module for FX5UC FX5-CNV-IFC – Interface converter (FX5U↔FX5UC) 🔹 8. Adapter Modules (ADP Series) Dipakai langsung di sisi kiri CPU (compact mount): FX5-4AD-ADP FX5-2DA-ADP FX5-4AD-TC-ADP FX5-4AD-PT-ADP FX5-485-ADP FX5-C24-ADP

Mitsubishi PLC FX5 Series (MELSEC iQ-F) — meliputi I/O modules, analog, komunikasi, motion, dan special function berdasarkan katalog resmi Mitsubishi Electric. 🔹 1. Digital I/O Expansion Modules ▪️ Input Modules FX5-8EX/ES – 8 input, 24 V DC FX5-16EX/ES – 16 input, 24 V DC FX5-32EX/ES – 32 input, 24 V DC FX5-64EX/ES – 64 input, 24 V DC ▪️ Output Modules FX5-8EY/ES – 8 relay output FX5-16EY/ES – 16 relay output FX5-32EY/ES – 32 relay output FX5-8ET/ES – 8 transistor output (sink) FX5-16ET/ES – 16 transistor output (sink) FX5-32ET/ES – 32 transistor output (sink) FX5-8EYT/ES – 8 transistor output (source) FX5-16EYT/ES – 16 transistor output (source) FX5-32EYT/ES – 32 transistor output (source) 🔹 2. Analog Modules ▪️ Analog Input FX5-4AD-ADP – 4 analog input (voltage/current) FX5-4AD-PT-ADP – 4 analog input (RTD/PT100/PT1000) FX5-4AD-TC-ADP – 4 analog input (thermocouple) FX5-8AD – 8 analog input channels ▪️ Analog Output FX5-2DA-ADP – 2 analog output (voltage/current) FX5-4DA – 4 analog output module ▪️ Mixed I/O FX5-4AD-2DA – 4 input + 2 output analog module 🔹 3. Communication & Network Modules FX5-ENET – Ethernet communication module FX5-ENET/IP – Ethernet IP module FX5-RS232-BD – RS-232 board FX5-485-BD – RS-485 board FX5-485ADP – RS-485 adapter FX5-CCLIE – CC-Link IE Field Basic module FX5-CCL-MS – CC-Link master module FX5-CCL-S – CC-Link slave module FX5-C24-ADP – Serial communication adapter (2-channel) FX5-SERIAL-IADP – Intelligent serial adapter FX5-WIFI – Wireless communication adapter (optional) 🔹 4. Motion Control / Positioning FX5-40SSC-SY – Simple motion module (4-axis control) FX5-80SSC-SY – Simple motion module (8-axis control) FX5-1PG-M – Pulse generator module (1 axis) FX5-2HC – High-speed counter module (2 channels) FX5-4HSCA-ADP – High-speed counter adapter (4 ch) 🔹 5. Special Function Modules FX5-PWM – Pulse width modulation module FX5-2LC – Temperature control module (PID loop) FX5-4LC – Temperature control module (4-loop) FX5-DIO-ADP – Digital I/O adapter FX5-CNV-IFC – Communication interface converter FX5-CNV-MB – Converter module for Modbus RTU 🔹 6. Memory & Option Modules FX5-EEPROM-32L – EEPROM memory (32 k steps) FX5-RAM-32L – RAM memory module FX5-SD-CARD – SD memory card (logging/program backup) FX5-BAT – Lithium backup battery 🔹 7. Power Supply & Interface Modules FX5-1PSU-5V – External power supply module FX5-PSU-EP – Power expansion module FX5-CNV-BDC – Connector conversion module for FX5UC FX5-CNV-IFC – Interface converter (FX5U↔FX5UC) 🔹 8. Adapter Modules (ADP Series) Dipakai langsung di sisi kiri CPU (compact mount): FX5-4AD-ADP FX5-2DA-ADP FX5-4AD-TC-ADP FX5-4AD-PT-ADP FX5-485-ADP FX5-C24-ADP

Communication Expansion

Mitsubishi PLC FX5 Series (MELSEC iQ-F) — meliputi I/O modules, analog, komunikasi, motion, dan special function berdasarkan katalog resmi Mitsubishi Electric. 🔹 1. Digital I/O Expansion Modules ▪️ Input Modules FX5-8EX/ES – 8 input, 24 V DC FX5-16EX/ES – 16 input, 24 V DC FX5-32EX/ES – 32 input, 24 V DC FX5-64EX/ES – 64 input, 24 V DC ▪️ Output Modules FX5-8EY/ES – 8 relay output FX5-16EY/ES – 16 relay output FX5-32EY/ES – 32 relay output FX5-8ET/ES – 8 transistor output (sink) FX5-16ET/ES – 16 transistor output (sink) FX5-32ET/ES – 32 transistor output (sink) FX5-8EYT/ES – 8 transistor output (source) FX5-16EYT/ES – 16 transistor output (source) FX5-32EYT/ES – 32 transistor output (source) 🔹 2. Analog Modules ▪️ Analog Input FX5-4AD-ADP – 4 analog input (voltage/current) FX5-4AD-PT-ADP – 4 analog input (RTD/PT100/PT1000) FX5-4AD-TC-ADP – 4 analog input (thermocouple) FX5-8AD – 8 analog input channels ▪️ Analog Output FX5-2DA-ADP – 2 analog output (voltage/current) FX5-4DA – 4 analog output module ▪️ Mixed I/O FX5-4AD-2DA – 4 input + 2 output analog module 🔹 3. Communication & Network Modules FX5-ENET – Ethernet communication module FX5-ENET/IP – Ethernet IP module FX5-RS232-BD – RS-232 board FX5-485-BD – RS-485 board FX5-485ADP – RS-485 adapter FX5-CCLIE – CC-Link IE Field Basic module FX5-CCL-MS – CC-Link master module FX5-CCL-S – CC-Link slave module FX5-C24-ADP – Serial communication adapter (2-channel) FX5-SERIAL-IADP – Intelligent serial adapter FX5-WIFI – Wireless communication adapter (optional) 🔹 4. Motion Control / Positioning FX5-40SSC-SY – Simple motion module (4-axis control) FX5-80SSC-SY – Simple motion module (8-axis control) FX5-1PG-M – Pulse generator module (1 axis) FX5-2HC – High-speed counter module (2 channels) FX5-4HSCA-ADP – High-speed counter adapter (4 ch) 🔹 5. Special Function Modules FX5-PWM – Pulse width modulation module FX5-2LC – Temperature control module (PID loop) FX5-4LC – Temperature control module (4-loop) FX5-DIO-ADP – Digital I/O adapter FX5-CNV-IFC – Communication interface converter FX5-CNV-MB – Converter module for Modbus RTU 🔹 6. Memory & Option Modules FX5-EEPROM-32L – EEPROM memory (32 k steps) FX5-RAM-32L – RAM memory module FX5-SD-CARD – SD memory card (logging/program backup) FX5-BAT – Lithium backup battery 🔹 7. Power Supply & Interface Modules FX5-1PSU-5V – External power supply module FX5-PSU-EP – Power expansion module FX5-CNV-BDC – Connector conversion module for FX5UC FX5-CNV-IFC – Interface converter (FX5U↔FX5UC) 🔹 8. Adapter Modules (ADP Series) Dipakai langsung di sisi kiri CPU (compact mount): FX5-4AD-ADP FX5-2DA-ADP FX5-4AD-TC-ADP FX5-4AD-PT-ADP FX5-485-ADP FX5-C24-ADP

Mitsubishi PLC FX5 Series (MELSEC iQ-F) — meliputi I/O modules, analog, komunikasi, motion, dan special function berdasarkan katalog resmi Mitsubishi Electric. 🔹 1. Digital I/O Expansion Modules ▪️ Input Modules FX5-8EX/ES – 8 input, 24 V DC FX5-16EX/ES – 16 input, 24 V DC FX5-32EX/ES – 32 input, 24 V DC FX5-64EX/ES – 64 input, 24 V DC ▪️ Output Modules FX5-8EY/ES – 8 relay output FX5-16EY/ES – 16 relay output FX5-32EY/ES – 32 relay output FX5-8ET/ES – 8 transistor output (sink) FX5-16ET/ES – 16 transistor output (sink) FX5-32ET/ES – 32 transistor output (sink) FX5-8EYT/ES – 8 transistor output (source) FX5-16EYT/ES – 16 transistor output (source) FX5-32EYT/ES – 32 transistor output (source) 🔹 2. Analog Modules ▪️ Analog Input FX5-4AD-ADP – 4 analog input (voltage/current) FX5-4AD-PT-ADP – 4 analog input (RTD/PT100/PT1000) FX5-4AD-TC-ADP – 4 analog input (thermocouple) FX5-8AD – 8 analog input channels ▪️ Analog Output FX5-2DA-ADP – 2 analog output (voltage/current) FX5-4DA – 4 analog output module ▪️ Mixed I/O FX5-4AD-2DA – 4 input + 2 output analog module 🔹 3. Communication & Network Modules FX5-ENET – Ethernet communication module FX5-ENET/IP – Ethernet IP module FX5-RS232-BD – RS-232 board FX5-485-BD – RS-485 board FX5-485ADP – RS-485 adapter FX5-CCLIE – CC-Link IE Field Basic module FX5-CCL-MS – CC-Link master module FX5-CCL-S – CC-Link slave module FX5-C24-ADP – Serial communication adapter (2-channel) FX5-SERIAL-IADP – Intelligent serial adapter FX5-WIFI – Wireless communication adapter (optional) 🔹 4. Motion Control / Positioning FX5-40SSC-SY – Simple motion module (4-axis control) FX5-80SSC-SY – Simple motion module (8-axis control) FX5-1PG-M – Pulse generator module (1 axis) FX5-2HC – High-speed counter module (2 channels) FX5-4HSCA-ADP – High-speed counter adapter (4 ch) 🔹 5. Special Function Modules FX5-PWM – Pulse width modulation module FX5-2LC – Temperature control module (PID loop) FX5-4LC – Temperature control module (4-loop) FX5-DIO-ADP – Digital I/O adapter FX5-CNV-IFC – Communication interface converter FX5-CNV-MB – Converter module for Modbus RTU 🔹 6. Memory & Option Modules FX5-EEPROM-32L – EEPROM memory (32 k steps) FX5-RAM-32L – RAM memory module FX5-SD-CARD – SD memory card (logging/program backup) FX5-BAT – Lithium backup battery 🔹 7. Power Supply & Interface Modules FX5-1PSU-5V – External power supply module FX5-PSU-EP – Power expansion module FX5-CNV-BDC – Connector conversion module for FX5UC FX5-CNV-IFC – Interface converter (FX5U↔FX5UC) 🔹 8. Adapter Modules (ADP Series) Dipakai langsung di sisi kiri CPU (compact mount): FX5-4AD-ADP FX5-2DA-ADP FX5-4AD-TC-ADP FX5-4AD-PT-ADP FX5-485-ADP FX5-C24-ADP
