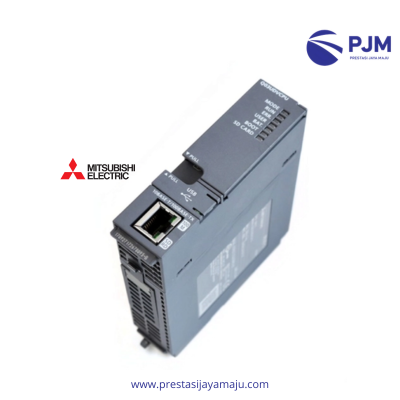

Spesifikasi Mitsubishi Q03UDVCPU

Kinerja CPU

• Tipe CPU: Universal High-Performance – QnUDV Series

• Processing Speed:

  • Basic instructions: ±0.009 µs (super fast)

  • Applied instructions: ±0.015–0.03 µs

• Program Memory: 260K steps

• Scan Time: Ultra high-speed scan, cocok untuk cycle time rendah

Kapasitas & Penyimpanan

• Program Memory: 260K steps

• Device/Buffer Memory: Diperluas untuk sistem kompleks

• Backup Memory: Flash memory built-in

• External Memory: CompactFlash / Memory card (opsional)

I/O & Modular Expansion

• Maximum I/O Points: hingga 8.192 points

• Mendukung penuh seluruh modul Q Series, termasuk:

  • Digital & Analog I/O

  • High-speed counter

  • Servo control (MR-J3/MR-J4)

  • Advanced motion module

  • Temperature controller

  • Safety controller

  • Robot interface

  • Distributed I/O system (CC-Link / CC-Link IE Field)

Jaringan & Komunikasi

• Built-In USB Programming Port

• Mendukung module jaringan canggih:

  • Ethernet / Ethernet TCP-IP

  • CC-Link & CC-Link IE Field

  • MELSECNET/H

  • Profibus

  • DeviceNet

  • Modbus TCP/RTU

  • Serial RS232/RS485 melalui module

Lingkungan Operasi

• Operating Temperature: 0 – 55°C

• Vibration/Shock: Sesuai standar industri berat

• Power Supply: Menggunakan PSU module Q Series

Fitur Tambahan

• Eksekusi ultra cepat → ideal untuk kontrol presisi

• Built-in self diagnostic & reliability tinggi

• Mendukung multi-CPU system untuk proyek skala besar

• Mendukung real-time processing

• Software: GX Works2 & GX Developer
