Jual Mitsubishi QD70P4

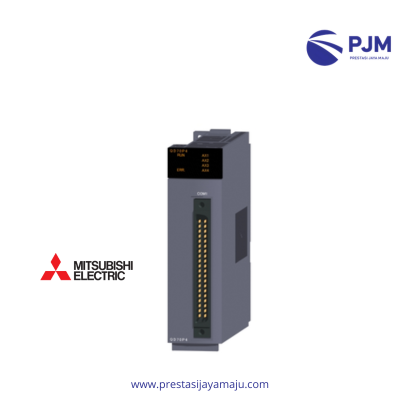

Jual Mitsubishi QD70P4 – 4-Axis Positioning Module | MELSEC-Q Series
Mitsubishi QD70P4 adalah 4-Axis Positioning Module dari seri MELSEC-Q yang dirancang untuk kebutuhan kontrol gerak presisi pada sistem otomasi industri. Modul ini bekerja menggunakan pulse train output, sehingga kompatibel dengan berbagai jenis servo drive dan stepper motor berbasis pulsa.
QD70P4 mendukung beberapa mode kontrol seperti positioning, interpolation, synchronous control, serta absolute dan incremental positioning. Modul ini sangat cocok digunakan pada aplikasi mesin yang membutuhkan kontrol multi-axis seperti mesin packaging, robotik, mesin printing, conveyor, dan sistem linear berkecepatan tinggi.
Dengan integrasi penuh ke platform PLC MELSEC-Q, QD70P4 memberikan performa tinggi, stabilitas maksimal, dan fleksibilitas konfigurasi untuk berbagai kebutuhan motion control skala menengah hingga kompleks
📞 Hubungi kami sekarang untuk penawaran terbaik & konsultasi teknis!
Fitur Utama Mitsubishi QD70P4
-
Kontrol 4-axis presisi tinggi
-
Output pulsa berkecepatan tinggi hingga MHz-class
-
Mendukung linear dan circular interpolation
-
Mode kontrol lengkap: Position, Speed, Synchronous
-
Konfigurasi mudah melalui MT Developer2 / GX Works2
-
Buffer memory untuk eksekusi perintah dan status real-time
-
Mendukung absolute & incremental positioning
-
Kompatibel dengan berbagai pulse output servo dan stepper
-
Integrasi kuat dengan ekosistem MELSEC-Q
Spesifikasi Teknis QD70P4
| Parameter | Detail |
|---|---|
| Tipe Modul | 4-Axis Positioning Module |
| Jumlah Axis | 4 Axis |
| Tipe Kontrol | Pulse Train Output |
| Output Frequency | 4–8 MHz (servo-dependent) |
| Mode Kontrol | Positioning, Speed, Synchronous, Interpolation |
| Interpolation | Linear & Circular |
| Metode Positioning | Absolute / Incremental |
| Sinyal I/O | Start, Stop, Home, LSP/LSP, BUSY, Complete |
| Software Setting | MT Developer2 / GX Works2 |
| Kompatibilitas PLC | MELSEC-Q Base Unit |
Tipe dan Model Lengkap MELSEC-Q Series Simple motion positioning
Simple motion
QD77GF4
QD77GF8
QD77GF16
QD77MS2
QD77MS4
QD77MS16
Positioning
QD75P1N
QD75P1
QD75P2N
QD75P2
QD75P4N
QD75P4
QD75D1N
QD75D1
QD75D2N
QD75D2
QD75D4N
QD75D4
QD75MH1
QD75MH2
QD75MH4
QD75M1
QD75M2
QD75M4
QD70P4
QD70P8
QD70D4
QD70D8
QD74MH8
QD74MH16
QD72P3C3
QD73A1
